Inspection Procedure 12: ASC-ECU Power Supply Circuit System: Notes

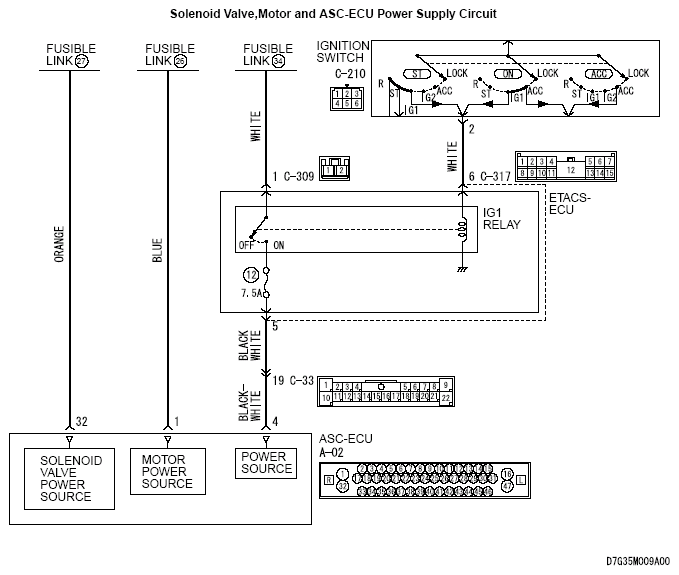

Fig 1: ASC-ECU Power Supply Circuit Diagram
G04872083Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
