Special Tool

SPECIAL TOOL

TOOL Tool number and name Supersession Application
G04872090
 MB991958
  1. MB991824
  2. MB991827
  3. MB991910
  4. MB991911
  5. MB991914
  6. MB991825
  7. MB991826

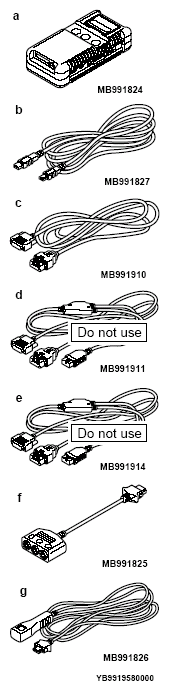

M.U.T.-III sub assembly
  1. Vehicle communication interface (V.C.I.)
  2. M.U.T.-III USB cable
  3. M.U.T.-III main harness A (Vehicles with CAN communication system)
  4. M.U.T.-III main harness B (Vehicles without CAN communication system)
  5. M.U.T.-III main harness C (for Daimler Chrysler models only)
  6. M.U.T.-III measurement adapter
  7. M.U.T.-III trigger harness
 MB991824-KIT
NOTE: G: MB991826 M.U.T.-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.
CAUTION: M.U.T.-III main harness A (MB991910) should be used. M.U.T.-III main harness B and C should not be used for this vehicle.
ASC check (Diagnostic trouble code display, service data display and calibration by scan tool)
G04872091
 MB991997 ASC check harness Voltage inspection at ASC-ECU terminals
G04873387
  1. MB991219
  2. MB991220
  3. MB991221
  4. MB991222

Harness set
  1. Test harness
  2. LED harness
  3. LED harness adaptor
  4. Probe
 General service tools Continuity check and voltage measurement at harness wire or connector for loose, corroded or damaged terminals, or terminals pushed back in the connector.
  1. Connector pin contact pressure inspection
  2. Power circuit inspection
  3. Power circuit inspection
  4. Commercial tester connection
G04873391
 MB992006 Extra fine probe - Continuity check and voltage measurement at harness wire or connector for loose, corroded or damaged terminals, or terminals pushed back in the connector.
