Removal And Installation

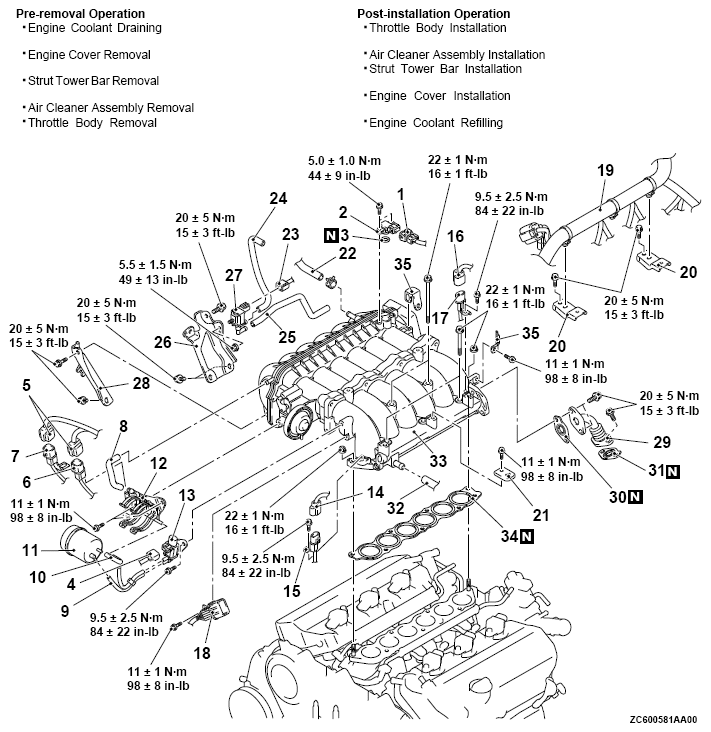

Fig 1: Intake Manifold Plenum Removal / Installation Components (1 Of 2) With Torque Specifications
G04870913Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

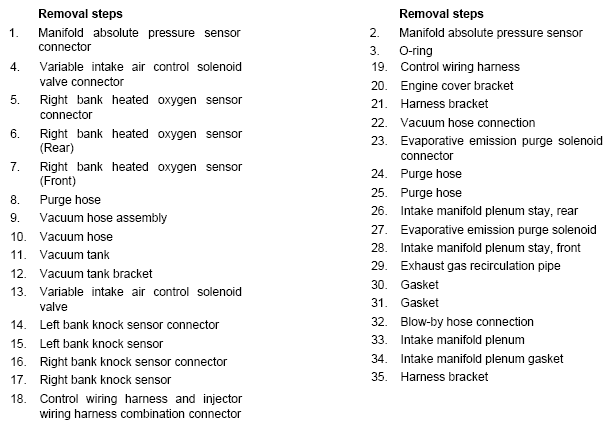

Fig 2: Identifying Intake Manifold Plenum Removal / Installation Components (2 Of 2)
G04870914Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
