Removal And Installation: Notes

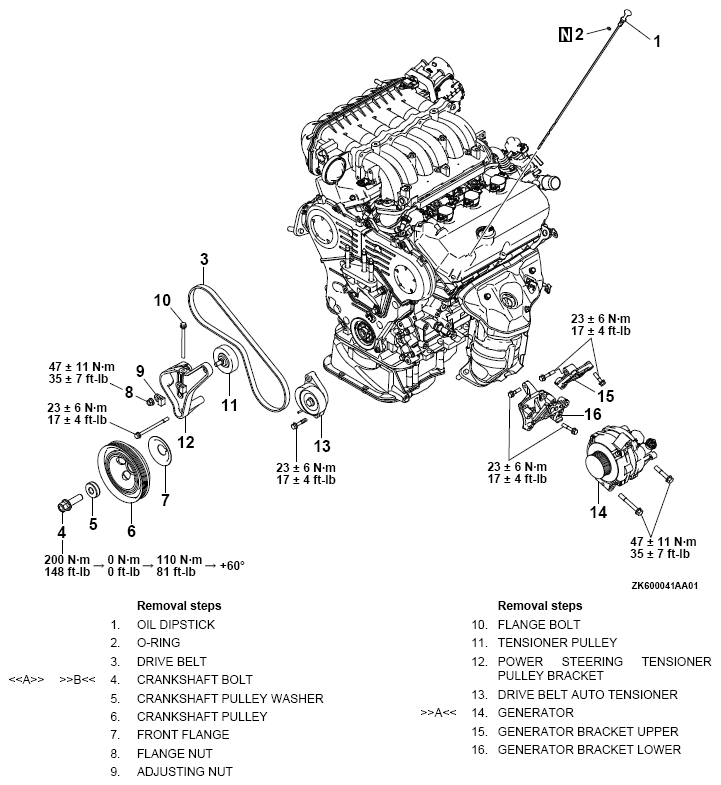

Fig 1: Engine Overhaul Generator Remove / Install Replacement Components With Torque Specifications
G04869693Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
