Disassembly And Assembly: Notes

WARNING: This page is about a different car, the 2008 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

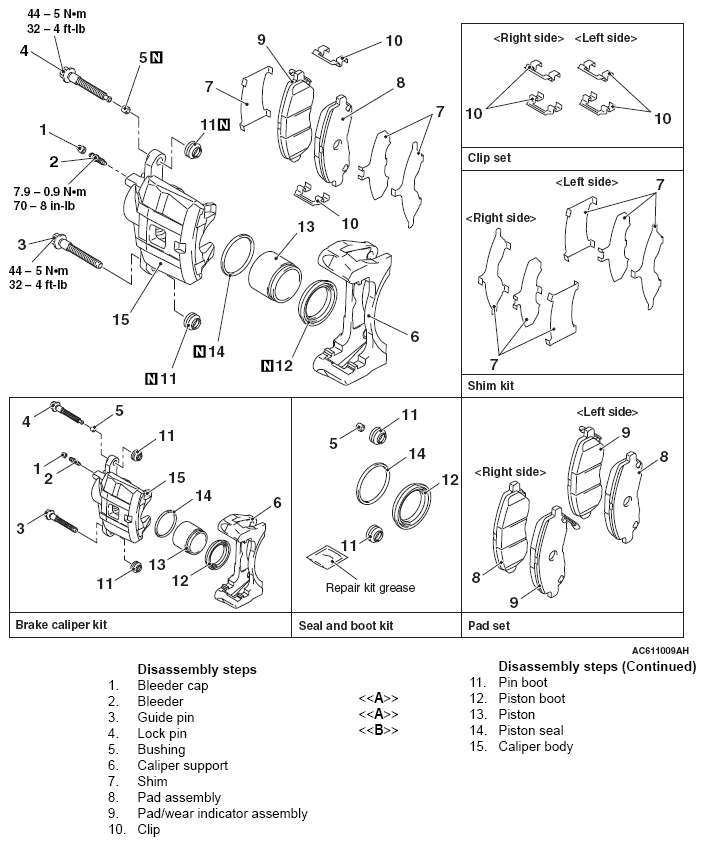

Fig 1: View Of Front Disc Brake Assembly With Torque Specifications
G05432480Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: Install the pad/wear indicator assembly to the inner side of the brake disc, making sure that the wear indicator is located on the top.
