Disassembly And Assembly: Notes

WARNING: This page is about a different car, the 2008 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

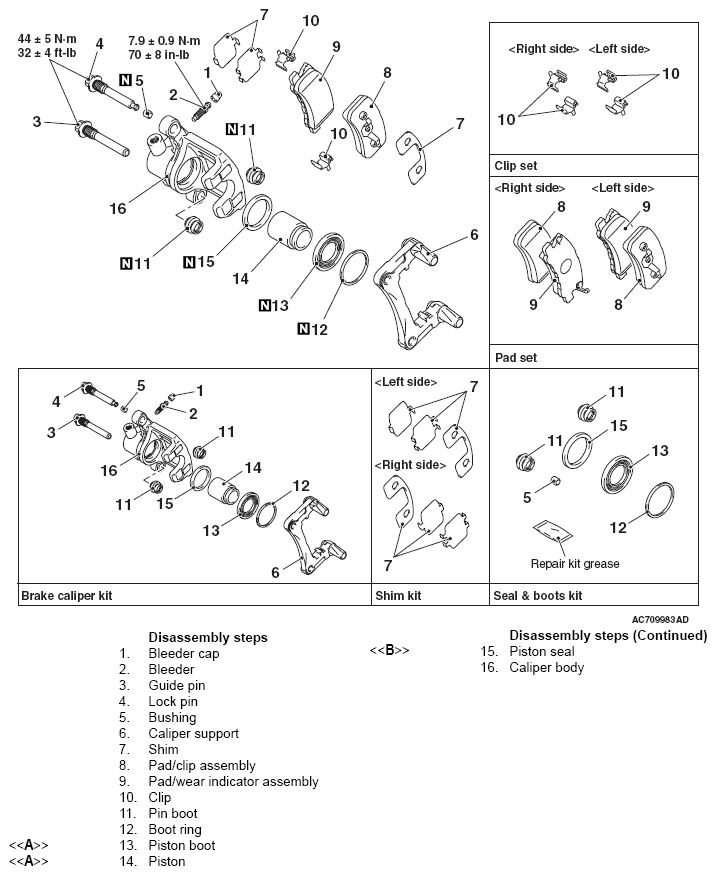

Fig 1: View Of Rear Disc Brake Assembly With Torque Specifications
G05432491Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE:
  • The pad/wear indicator assembly is installed only to the inner side of the brake disc of the left-side brake at factory.
  • As for the accessory pad set, the brake pad with wear indicator has been established to the inner side of the brake disc on both right and left.
  • Install the pad/wear indicator assembly to the inner side of the brake disc, making sure that the wear indicator is located on the bottom.
