Removal And Installation: Notes

CAUTION:

Before removing the steering wheel/air bag module assembly, refer to SERVICE PRECAUTIONS and AIR BAG MODULE CLOCK SPRING .
After the installation, perform a calibration for the ASC-ECU to learn the steering wheel sensor neutral point. (Refer to STEERING WHEEL SENSOR CALIBRATION .)

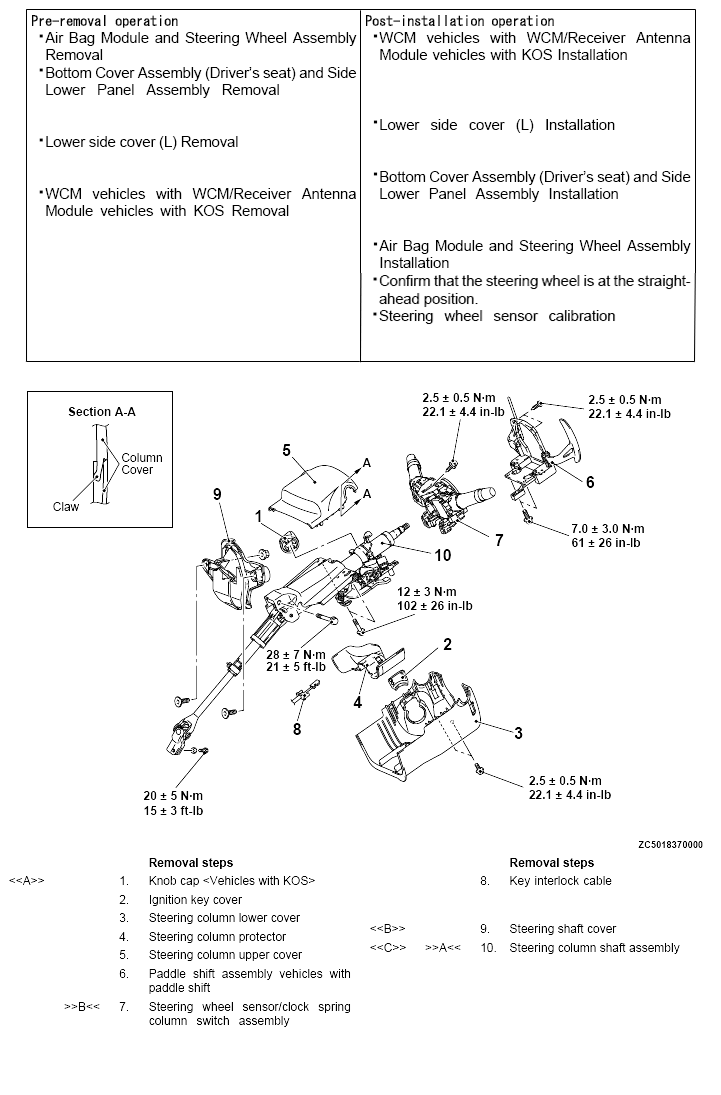

Fig 1: Exploded View Of Steering Shaft With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
