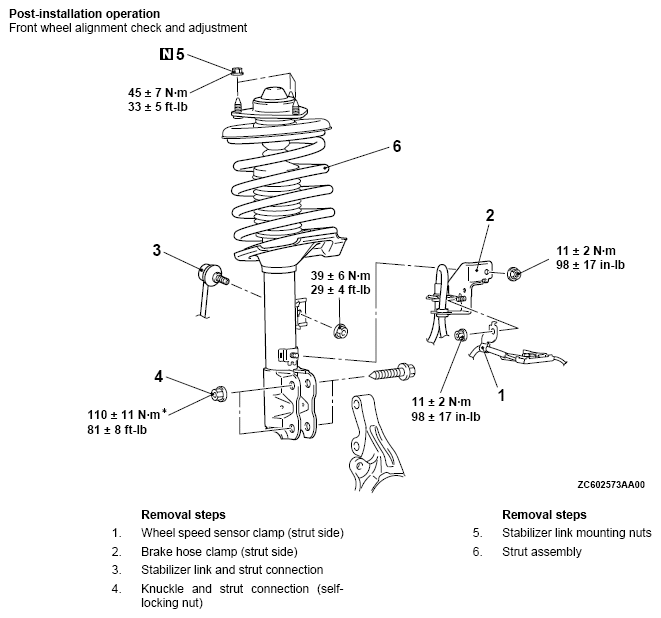

Removal And Installation
CAUTION:
- As for vehicles with headlamp auto levelling system, disconnect the height sensor from the lower arm before operation to prevent damages to the height sensor. (Refer to HEIGHT SENSOR .)
- The part indicated by* is the bolt/nut with friction coefficient stabilizer. In removal, ensure there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten it to the specified torque.
