Disassembly And Reassembly: Notes

CAUTION: Refer to "HOW TO USE THIS MANUAL " for the symbols in the schematic.

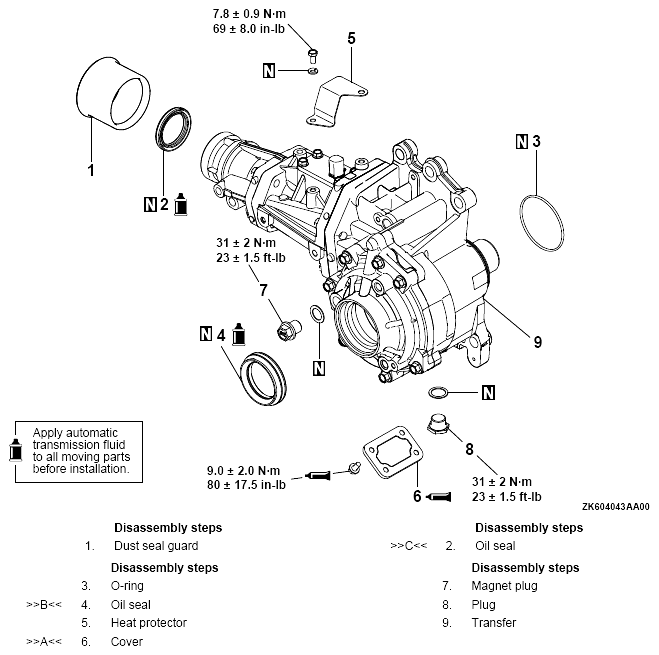

Fig 1: Exploded View Of Transfer With Torque Specifications
G04871452Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
