*Driver Door Lock/Unlock Switch Input Stuck Lock: Notes

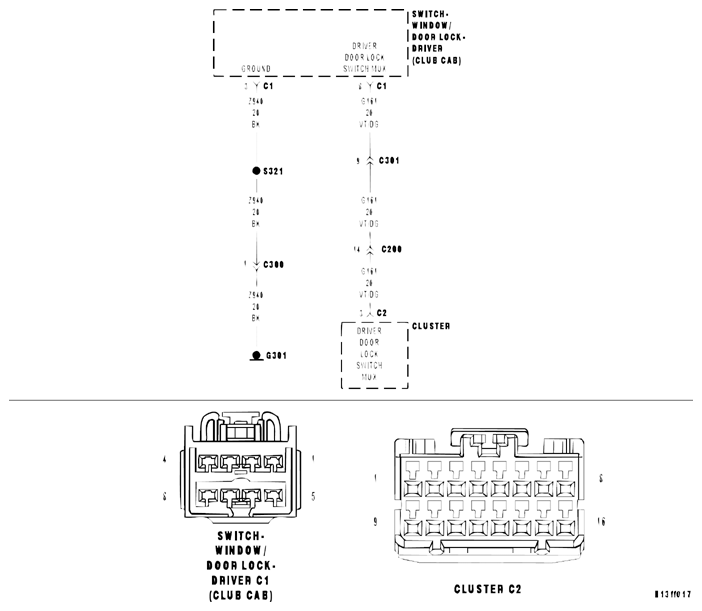

Fig 1: Driver Door Lock/Unlock Switch Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For a complete wiring diagram , refer to appropriate SYSTEM WIRING DIAGRAMS article.

Possible Causes
(G161) DRIVER DOOR LOCK SWITCH MUX CIRCUIT PARTIAL SHORT TO GROUND
DOOR LOCK SWITCH STUCK
INSTRUMENT CLUSTER
