*No Response From SDAR (Satellite Receiver): Notes

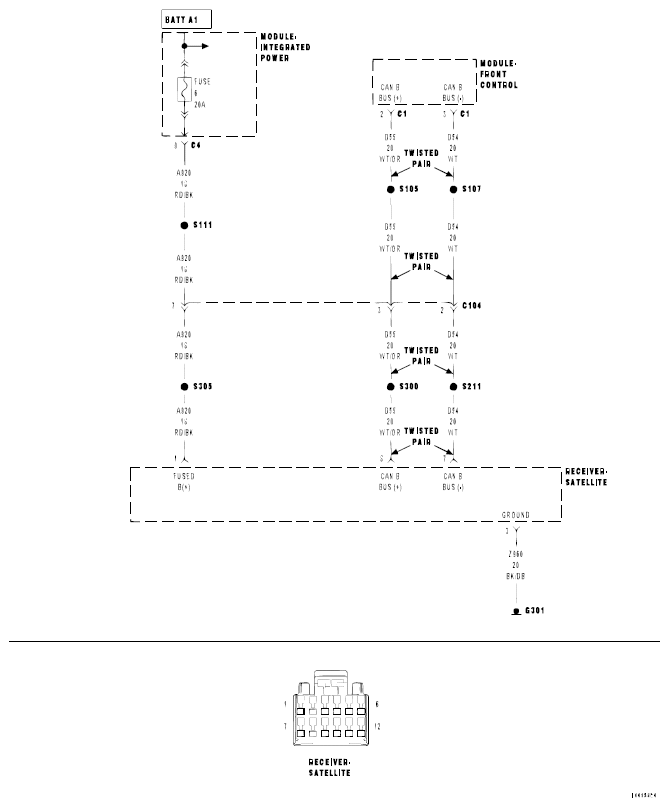

Fig 1: Satellite Receiver Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For a complete wiring diagram , refer to appropriate SYSTEM WIRING DIAGRAMS article.

Possible Causes
(A920) FUSED B (+) CIRCUIT OPEN OR SHORTED
(Z960) GROUND CIRCUIT OPEN
(D55) AND (D54) CAN B BUS CIRCUITS OPEN
SATELLITE RECEIVER
