DTC B2112-5 Volt Supply Circuit Low: Notes

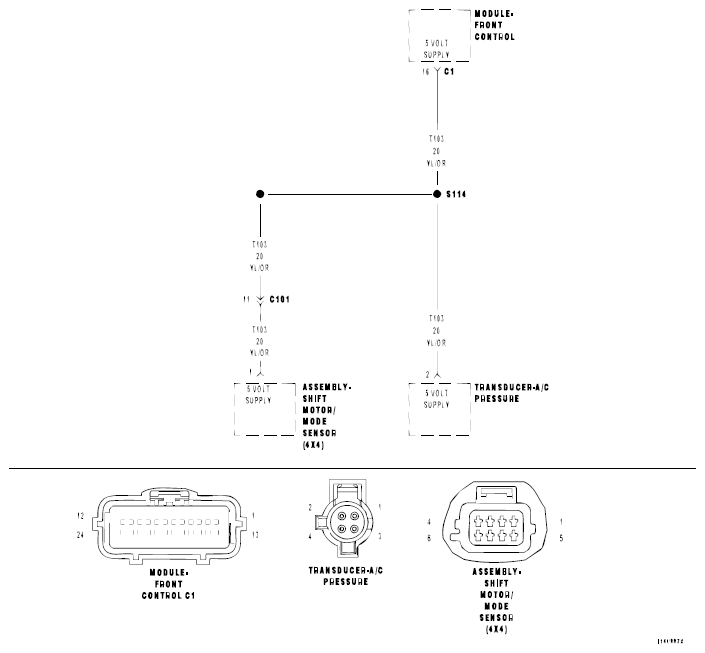

Fig 1: 5 Volt Supply Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For a complete wiring diagram  , refer to appropriate SYSTEM WIRING DIAGRAMS article.

• When Monitored:

  With the ignition on.

• Set Condition:

  The Front Control Module detects the (T103) 5 volt supply circuit voltage below 0.3 volts.
