DTC U0023-Can B Bus (+) Circuit High: Notes

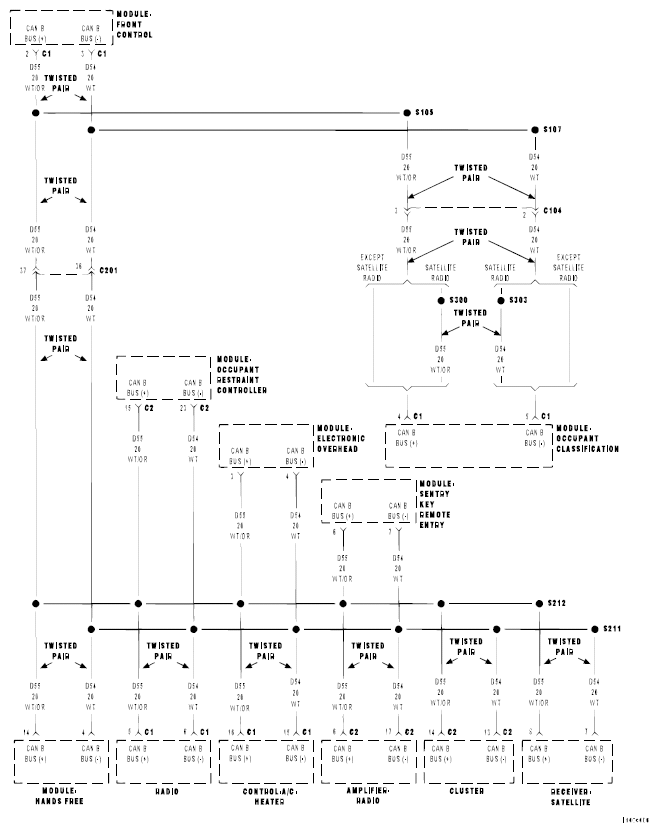

Fig 1: CAN B Bus Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For a complete wiring diagram  , refer to appropriate SYSTEM WIRING DIAGRAMS article.

• When Monitored:

  Continuously

• Set Condition:

  The FCM detects the (D55) CAN B Bus (+) circuit is shorted to voltage.
