DTC B1436-Voice Recognition/Phone Switch Input Circuit Low: Notes

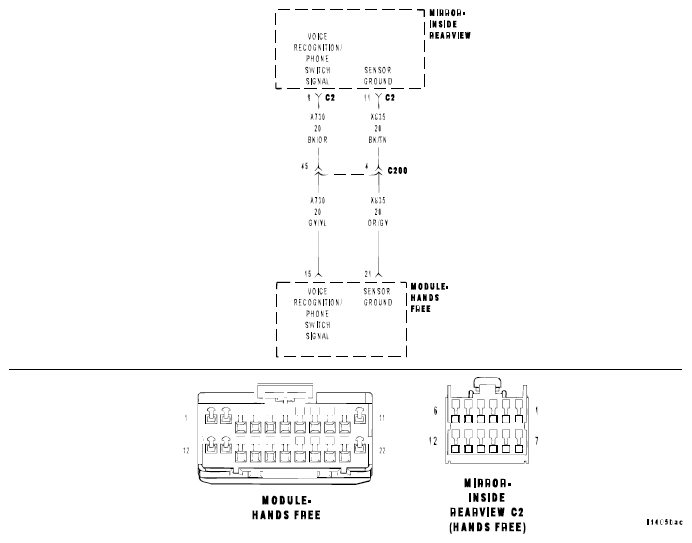

Fig 1: Voice Recognition/Phone Switch Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For a complete wiring diagram,  refer to appropriate SYSTEM WIRING DIAGRAMS article.

• When Monitored:

  With the ignition on.

• Set Condition:

  The Hands Free Module detects voltage below 0.6 volts on the (X730) Voice Recognition/Phone Switch Signal circuit.
