Diagnostic Test

CHECK FOR ACTIVE DTCS
1. With the scan tool, read the active DTC's.
2. Cycle the ignition switch from off to on at least 5 times, leaving the ignition on for a minimum of 90 seconds per cycle.
3. With the scan tool, read the active DTC's.
Q: Does the scan tool display this DTC as active?

Yes :
- Go To 2
No :
- If the DTC is stored, check for an intermittent condition. Visually inspect the related wiring harness connectors. Look for broken, bent, pushed out, or corroded terminals.
CHECK THE VOLTAGE OF THE (X730) VOICE RECOGNITION/PHONE SWITCH SIGNAL

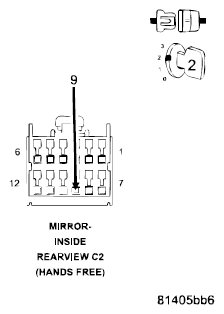

Fig 1: Checking Voltage Of Voice Recognition/Phone Switch Signal
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
1. Turn the ignition off.
2. Disconnect the Inside Rearview Mirror C2 harness connector.
3. Turn the ignition on.
4. With the scan tool, monitor the VR Phone Switch voltage.
5. While monitoring the VR Phone Switch voltage, momentarily connect a jumper wire between (X730) Voice Recognition/Phone Switch Signal circuit and ground.
NOTE: The scan tool sensor voltage should switch from above 4.7 volts when the jumper is not connected to below 0.6 volts when the jumper is connected.

Q: Does the sensor voltage switch from above 4.7 volts to below 0.6 volt as described?

Yes :
- Replace the Inside Rearview Mirror in accordance with the service information.
- Perform BODY VERIFICATION TEST - VER 1 .
No :
- Inspect the wiring and connectors for damage or shorted circuits. If okay, replace and program the Hands Free Module in accordance with the service information.
- Perform BODY VERIFICATION TEST - VER 1 .
