DTC B1435-Voice Recognition/Phone Switch Input Circuit Performance: Notes

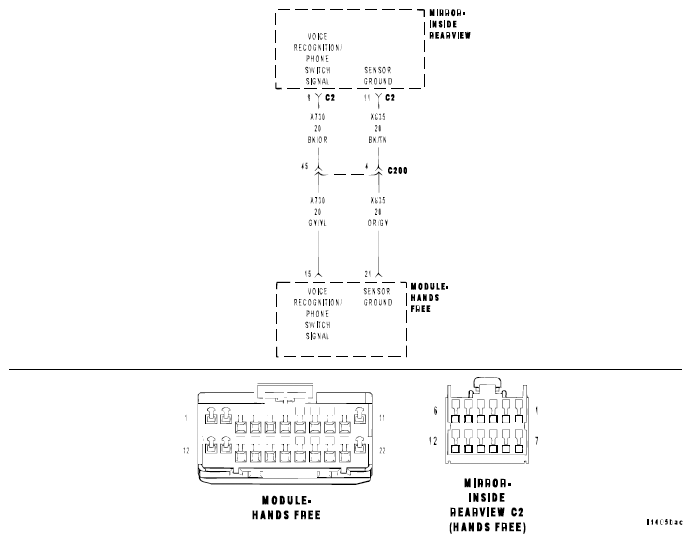

Fig 1: Voice Recognition/Phone Switch Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For a complete wiring diagram,  refer to appropriate SYSTEM WIRING DIAGRAMS article.

• When Monitored:

  With the ignition on.

• Set Condition:

  The Hands Free Module detects an invalid voltage signal on the (X730) Voice Recognition/Phone Switch Signal circuit.
