DTC P0051-O2 Sensor 2/1 Heater Circuit Low: Notes

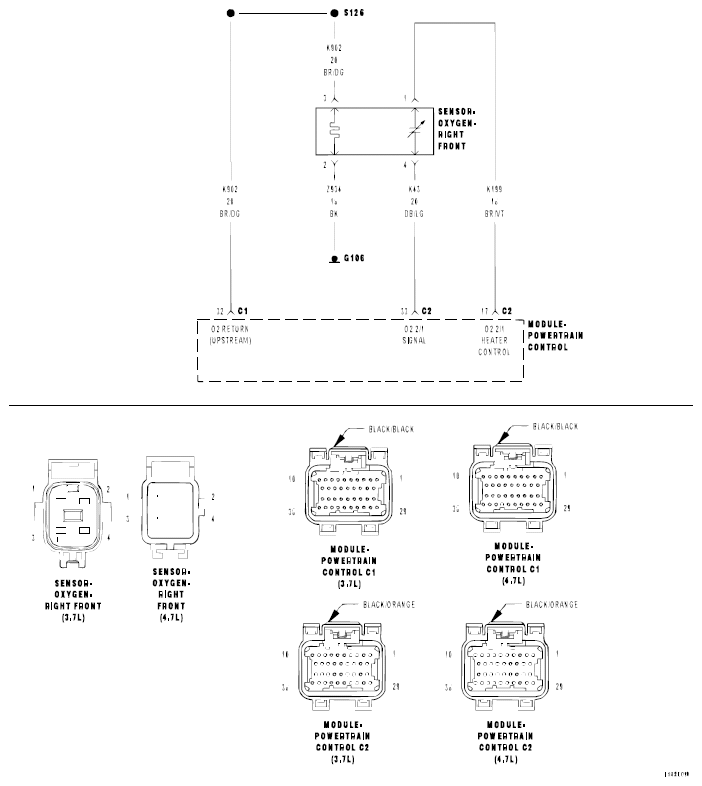

Fig 1: Sensor 2/1 Heater Circuit - Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article.

• When Monitored:

  Battery voltage above 10.6 volts, ASD is powered up, and O2 heater is on.

• Set Condition:

  Desired state does not match Actual state.

  One Trip Fault. Three good trips to turn off the MIL.

Always perform the PRE-DIAGNOSTIC TROUBLESHOOTING PROCEDURE before proceeding.
