DTC U110C-No Fuel Level Bus Message Received: Notes

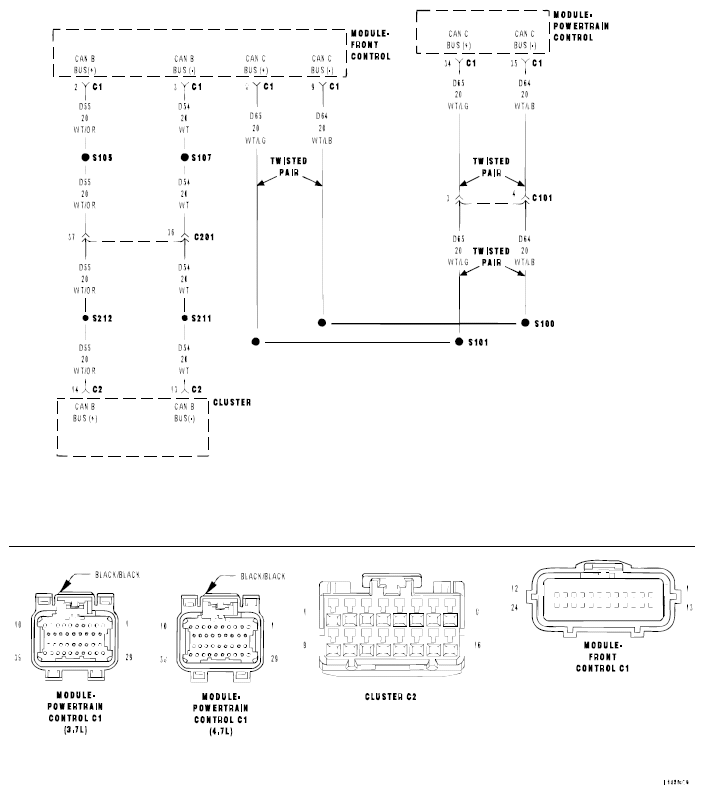

Fig 1: Front Control Module Communication Circuit - Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article.

• When Monitored:

  Ignition on.

• Set Condition:

  When the PCM does not receive a fuel level signal from the FCM over the CAN C circuit. The circuit is constantly monitored. One Trip fault.

Always perform the PRE-DIAGNOSTIC TROUBLESHOOTING PROCEDURE before proceeding.

Theory of Operation

The fuel level signal is a direct input to the Cluster. The fuel level signal is sent to the FCM over the CAN B bus circuit. The NGC receives the fuel level signal from the FCM over the CAN C bus circuit.
