DTC C1401 - Transfer Case Range Select Switch Circuit Low: Notes

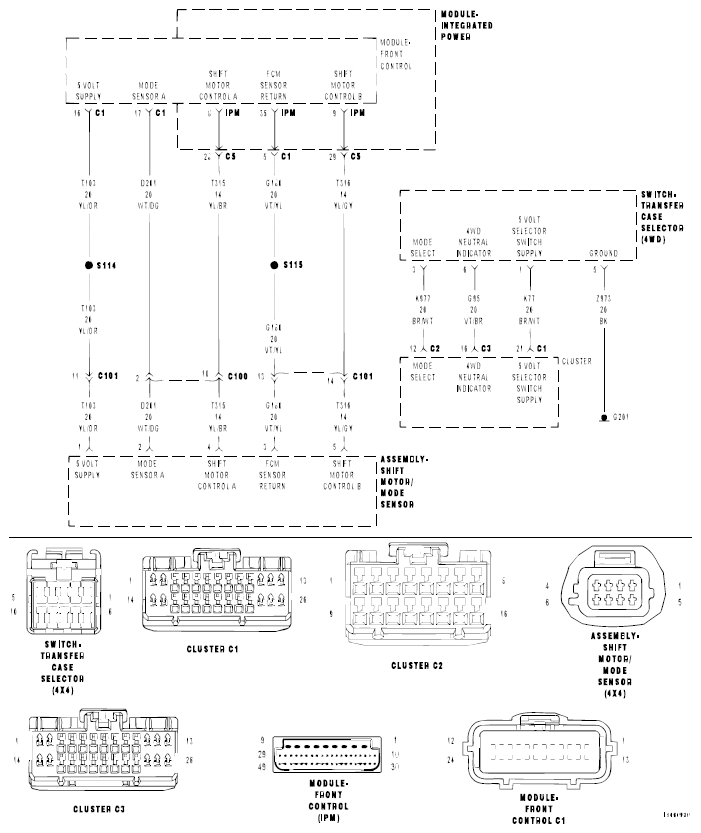

Fig 1: Transfer Case Range Select Switch Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For a complete wiring diagram  , refer to appropriate SYSTEM WIRING DIAGRAMS article.

• When Monitored:

  With the ignition on.

• Set Condition:

  Transfer Case Range Select Switch voltage less than 0.1568 volts for 5 seconds
