DTC C1403 - Transfer Case Range Position Sensor Performance: Notes

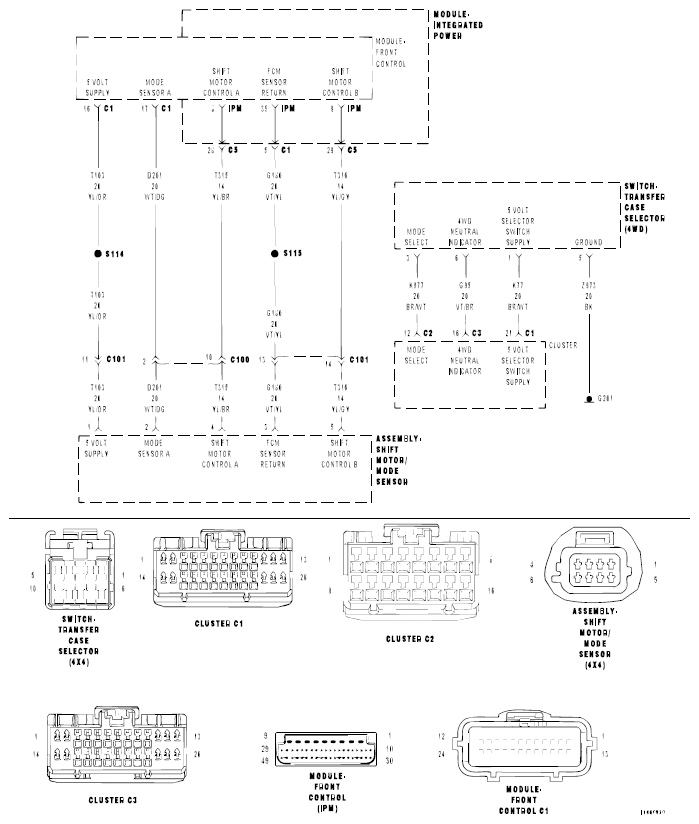

Fig 1: Transfer Case Range Position Sensor Performance Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For a complete wiring diagram  , refer to appropriate SYSTEM WIRING DIAGRAMS article.

• When Monitored:

  Ignition on. Battery voltage between 9 and 16 volts. No Range Position Sensor low or high voltage conditions present.

• Set Condition:

  During a blocked shift attempt, motor current indicates motor movement, but the sensor value change is less than a specified value.
