DTC C1404 - Transfer Case Range Position Sensor Circuit Low: Notes

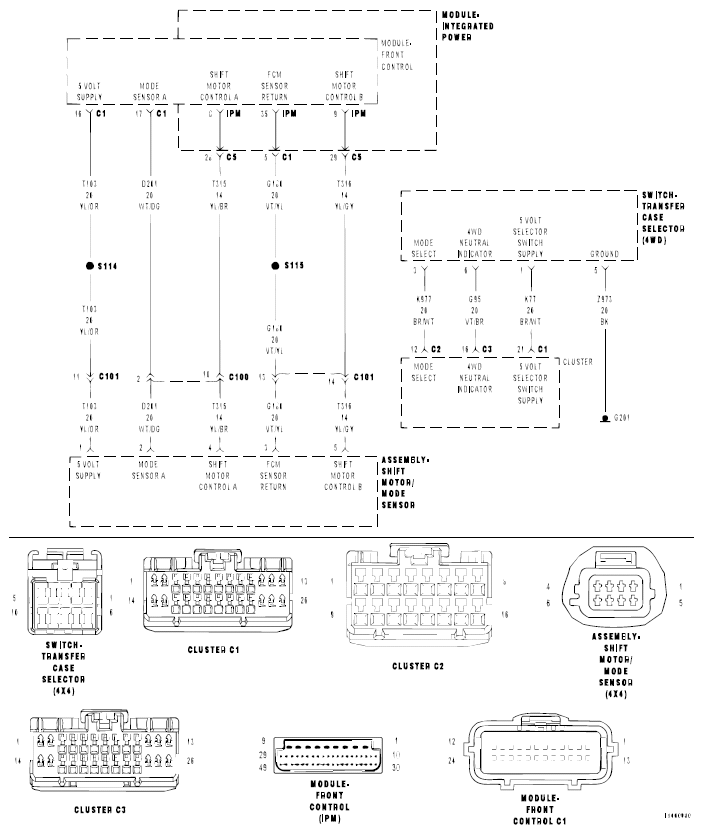

Fig 1: Transfer Case Range Position Sensor Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For a complete wiring diagram  , refer to appropriate SYSTEM WIRING DIAGRAMS article.

• When Monitored:

  Ignition on. Battery voltage between 9 and 16 volts.

• Set Condition:

  FCM detects a short to ground on the Transfer Case Position Sensor signal circuit for 2 seconds.
