DTC C1405 - Transfer Case Range Position Sensor Circuit High: Notes

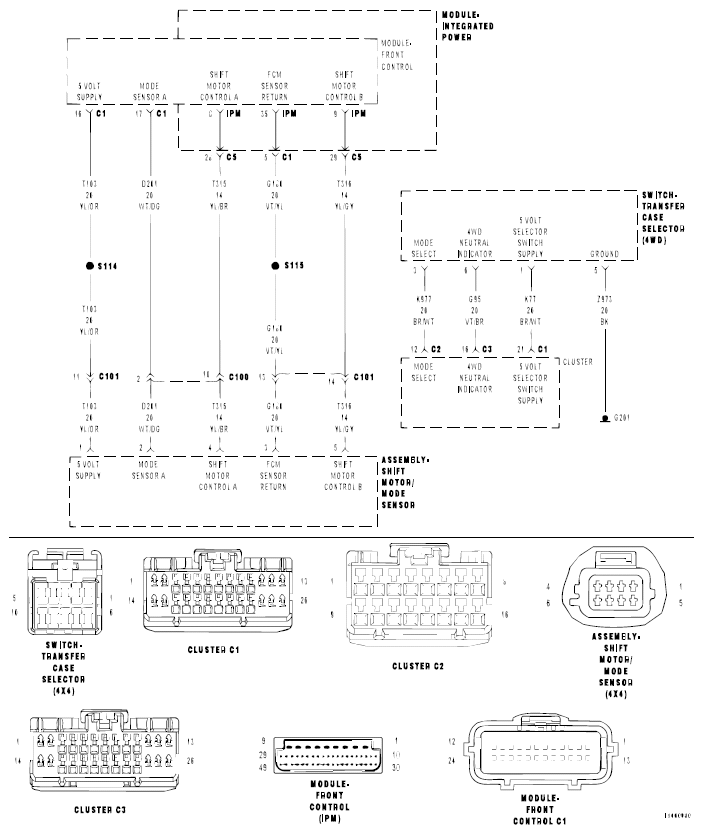

Fig 1: Transfer Case Range Position Sensor Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For a complete wiring diagram  , refer to appropriate SYSTEM WIRING DIAGRAMS article.

• When Monitored:

  Ignition on. Battery voltage between 9 and 16 volts

• Set Condition:

  FCM detects 5 volts on the Transfer Case Range Position Sensor signal circuit for 2 seconds
