*No Response From CCN (Cluster): Notes

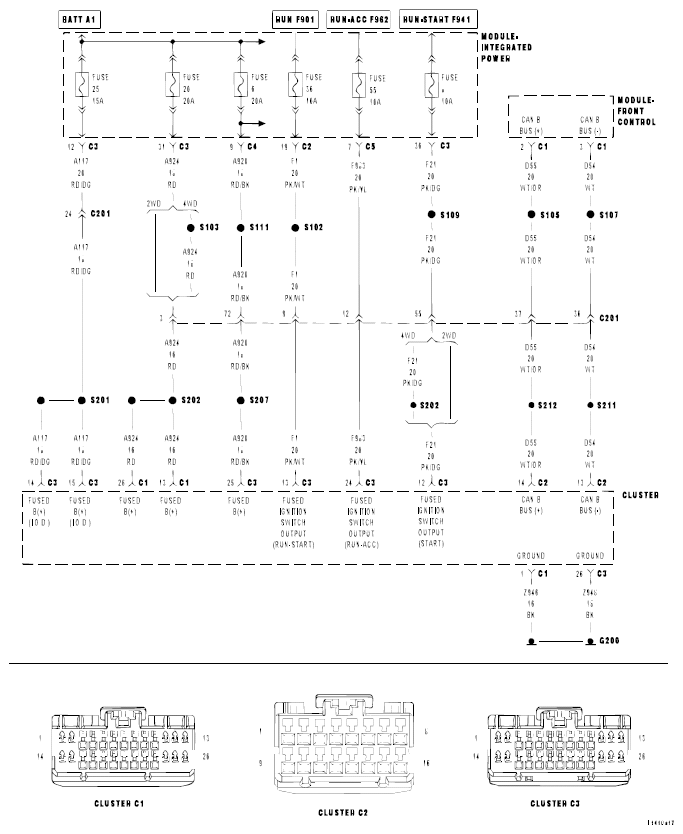

Fig 1: Cluster Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For a complete wiring diagram , refer to appropriate SYSTEM WIRING DIAGRAMS article.

Possible Causes
(A924) (A920) (A117) FUSED B (+) CIRCUITS OPEN OR SHORTED
(Z946) (Z948) GROUND CIRCUITS OPEN
(F21) (F983) FUSED IGNITION SWITCH OUTPUT CIRCUIT OPEN OR SHORTED
(D55) AND (D54) CAN B BUS CIRCUITS OPEN
CLUSTER (CCN)
