DTC U0027-Can B Bus (-) Shorted To Bus (+): Notes

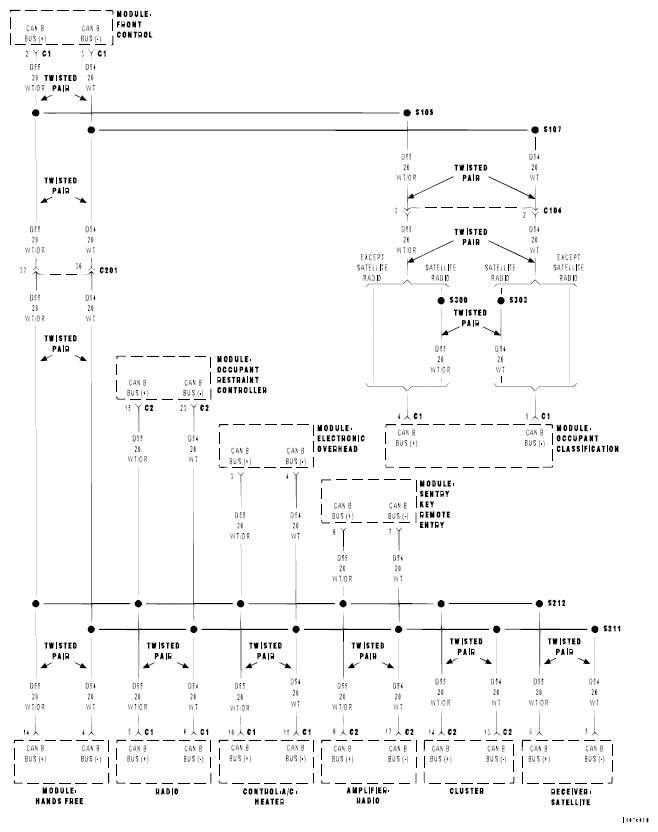

Fig 1: CAN B Bus Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For a complete wiring diagram  , refer to appropriate SYSTEM WIRING DIAGRAMS article.

• When Monitored:

  Continuously

• Set Condition:

  The FCM detects the (D55) CAN B Bus (+) circuit is shorted to the (D54) CAN B Bus (-) circuit.
