Disassembly And Assembly < Front >: Notes

WARNING: This page is about a different car, the 2009 Mitsubishi Eclipse. However, it is still accessible from the selected car via links, so may be relevant.

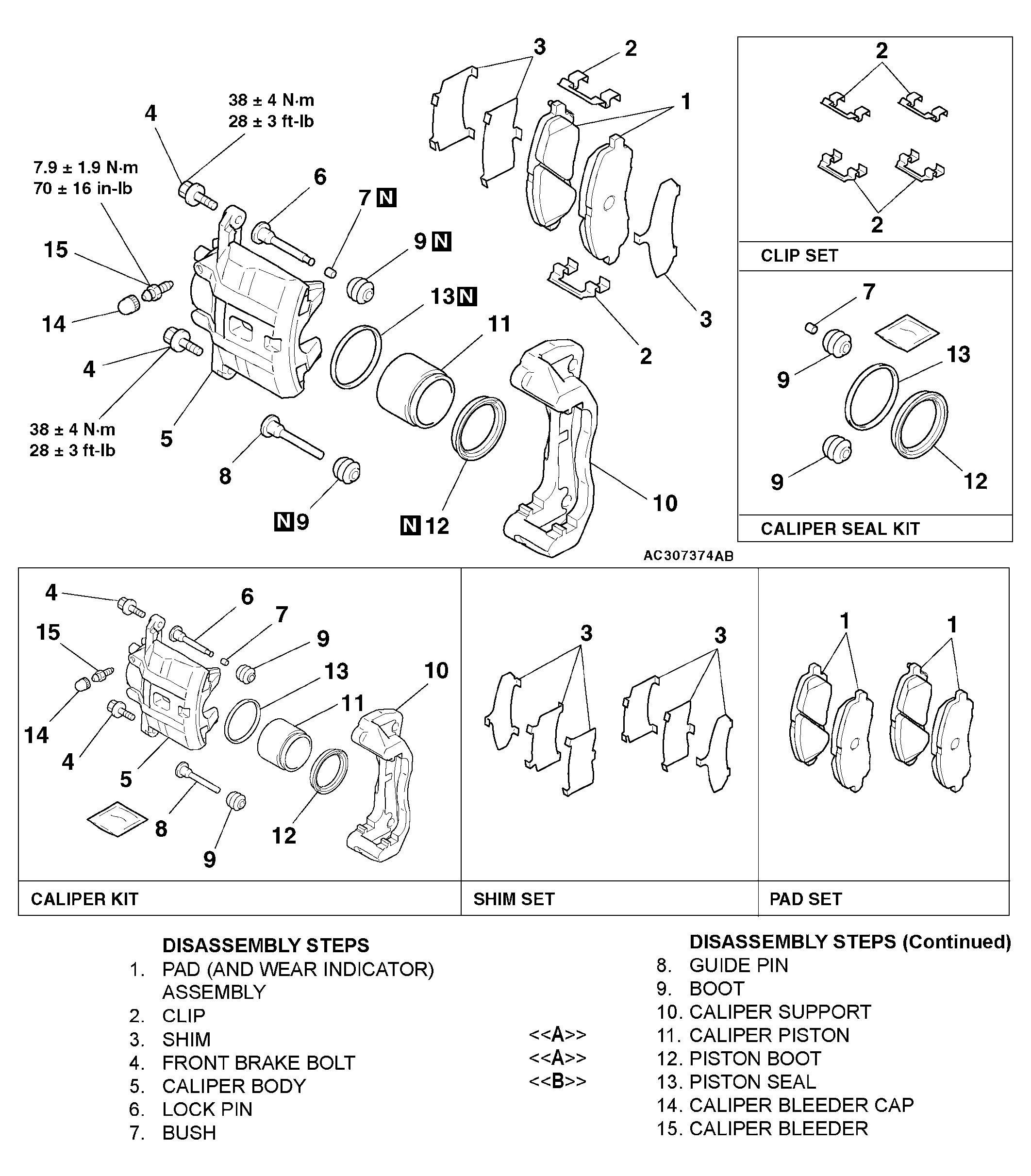

Fig 1: Disassembling Disc Brake Assembly With Torque Specifications (Front)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
