Brake Fluid Level Sensor Check

WARNING: This page is about a different car, the 2009 Mitsubishi Eclipse. However, it is still accessible from the selected car via links, so may be relevant.

The brake fluid level sensor is in good condition if there is no continuity when the float surface is above "MIN" and if there is continuity when the float surface is below "MIN".

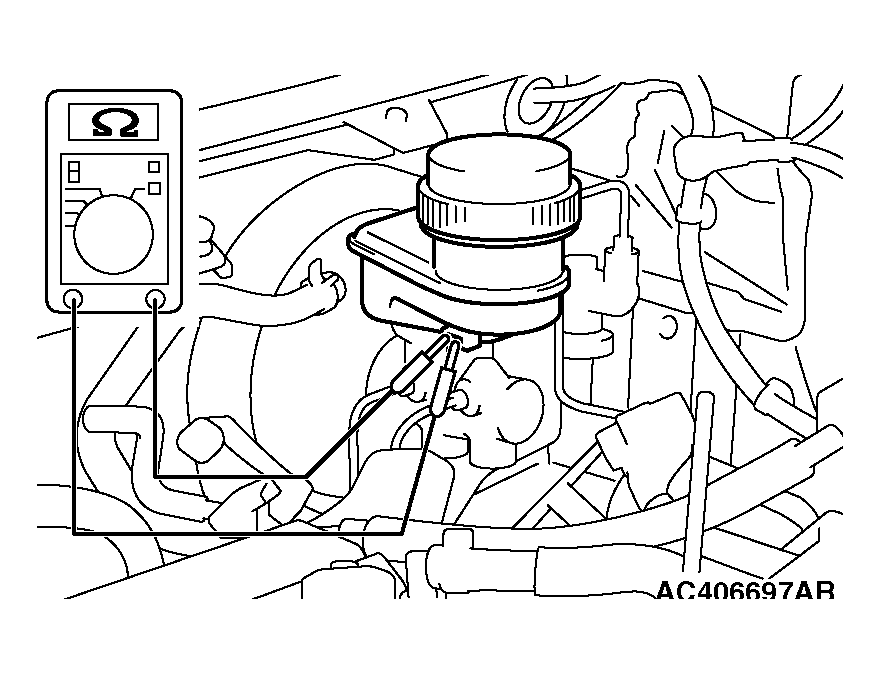

Fig 1: Checking Brake Fluid Level Sensor
G04231931Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
