Special Tools
SPECIAL TOOLS SPECIFICATIONS
| TOOL | TOOL NUMBER AND NAME | SUPERSESSION | APPLICATION |
|---|---|---|---|
| MD998333 Oil pump remover |
MD998333-01 | Removal of oil pump | |
| MD998924 Spring compressor retainer |
MD998924-01 | Use with spring compressor | |
| MD998338 Spring compressor |
MD998338 | Removal and installation of one-way clutch inner race snap ring | |
| MB990607 Torque wrench socket |
MB990607-01 | Removal and installation of output shaft nut | |
| MB991625 Special socket (41) |
- | Removal and installation of output shaft jam nut | |
| MD998412 Guide |
MD998412 | Installation of oil pump and transfer drive gear | |
| MB991632 Clearance dummy plate |
MB991632-01 | Measurement of reaction plate low-reverse brake and second brake end play | |
| MD998913 Dial gauge extension |
MD998913-01 | Measurement of low-reverse brake end play | |
| MB990938 Handle |
MB990938-01 |
|
|
| MB990930 Installer adapter |
MB990930-01 or General service tool | Installation of output shaft taper roller bearing outer race | |
| MD998350 Bearing installer |
MD998350-01 | Installation of output shaft collar and taper roller bearing | |
| MB990931 Installer adapter |
MB990931-01 or General service tool | Installation of cap | |
| MB990936 Installer adapter |
MB990936-01 or General service tool | Installation of differential taper roller bearing outer race | |
| MD998334 Oil seal installer |
MD998334-01 | Installation of oil pump oil seal | |
| MD998907 Spring compressor |
MD998907-01 | Removal and installation of underdrive clutch snap ring | |
| MB991629 Spring compressor |
- | Measurement of underdrive clutch and overdrive clutch end play | |
| MD999575 Spring compressor |
- | Removal and installation of reverse and overdrive clutch snap ring | |
| MB991789 Spring compressor |
- | Measurement of reverse clutch end play | |
| MD998917 Bearing remover |
General service tool or MD998348-01 | Removal of transfer driven gear | |
| MD998801 Bearing remover |
MD998348-01 | Removal of each bearing output shaft taper roller bearing (differential ball bearing) | |
| MD998812 Installer cap |
General service tool | Use with installer and installer adapter | |
| MD998814 Installer - 200 |
MIT304180 | Use with installer cap and installer adapter | |
| MB990937 Installer adapter |
MB990937 or General service tool | Installation of output shaft taper roller bearing | |
| MD998825 Installer adapter (52) |
General service tool | Installation of output shaft taper roller bearing | |
| MD998813 Installer - 100 |
General service tool | Use with installer cap and installer adapter | |
| MD998824 Installer adapter (50) |
General service tool | Installation of transfer driven gear, center differential taper roller bearing < W4A5A > | |
| MD998820 Installer adapter (42) |
MIT215013 | Installation of differential taper roller bearing | |
| MD998800 Oil seal installer |
General service tool | Installation of drive shaft oil seal | |

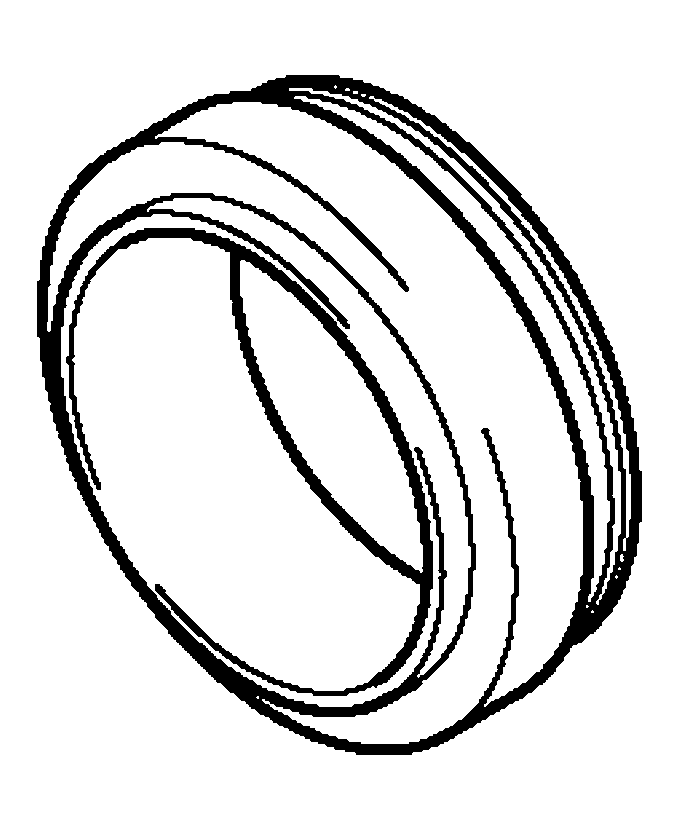

| MB990887 Ring |
- | Installation of transfer oil seal < W4A5A > | |
| MB990891 Bushing remover installer base |
- | Installation of transfer oil seal < W4A5A > |
