DTC U1515: No-Bus activity error (LIN): Notes

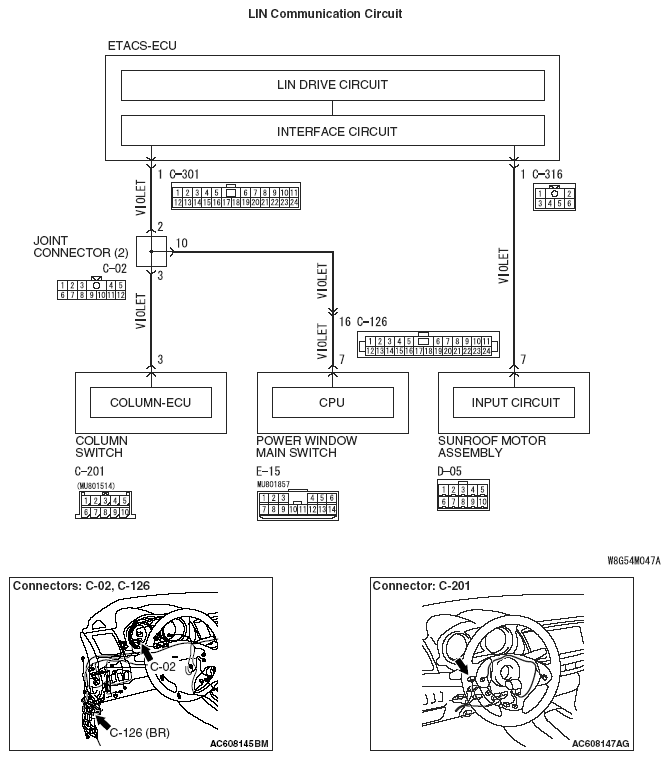

Fig 1: LIN Communication Circuit Diagram
G05385707Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

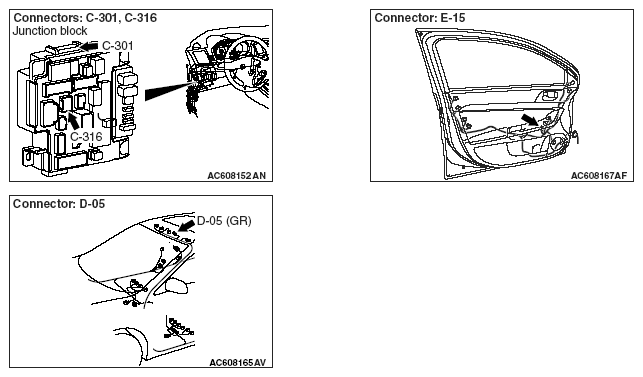

Fig 2: Locating Connectors C-301, C-316, D-05 And E-15
G05385708Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
