Removal And Installation: Notes

CAUTION:

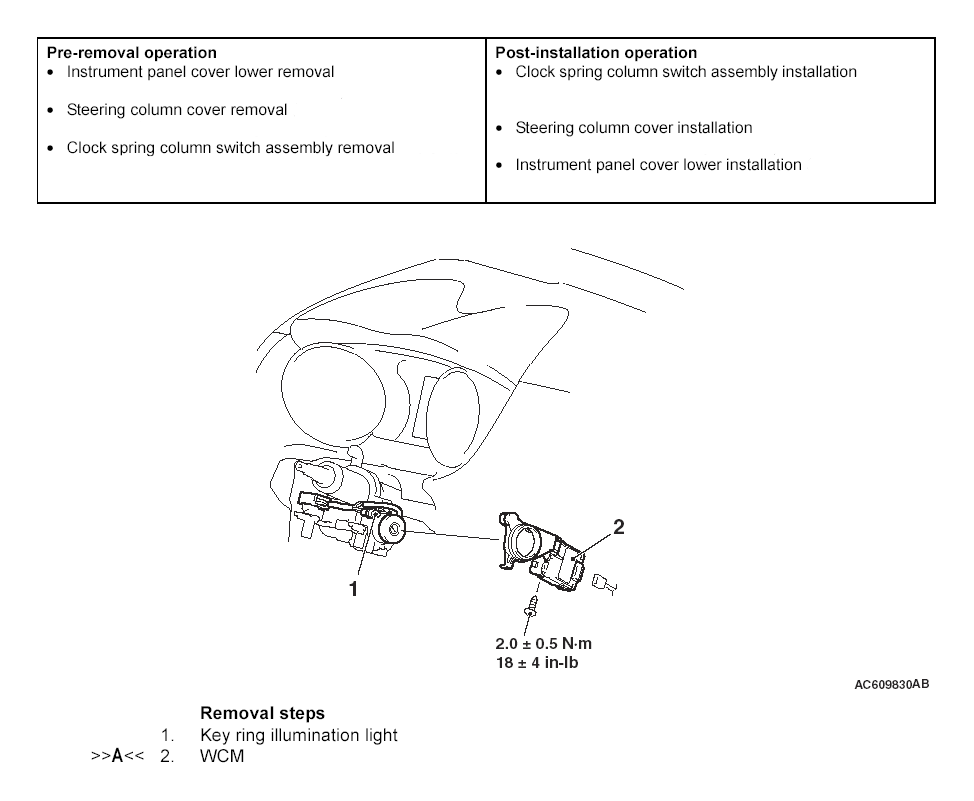

Fig 1: WCM Removal And Installation Replacement Components With Torque Specifications
G05384484Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
