INSPECTION PROCEDURE 3: Steering wheel audio remote control switch illumination does not come on.: Notes

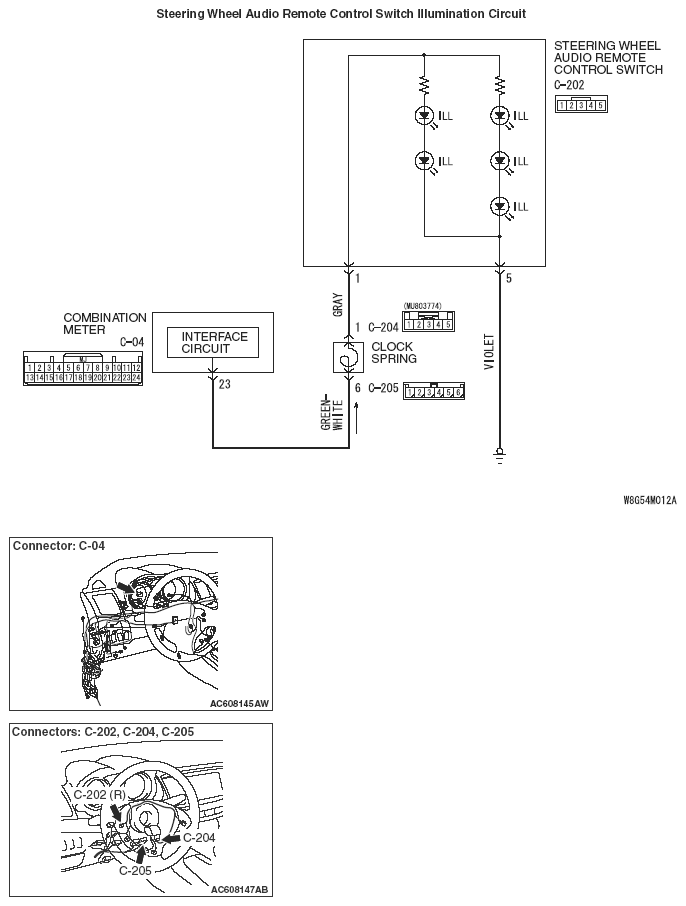

Fig 1: Steering Wheel Audio Remote Control Switch Illumination Circuit Diagram
G05385550Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
