Driver's Air Bag Module And Clock Spring

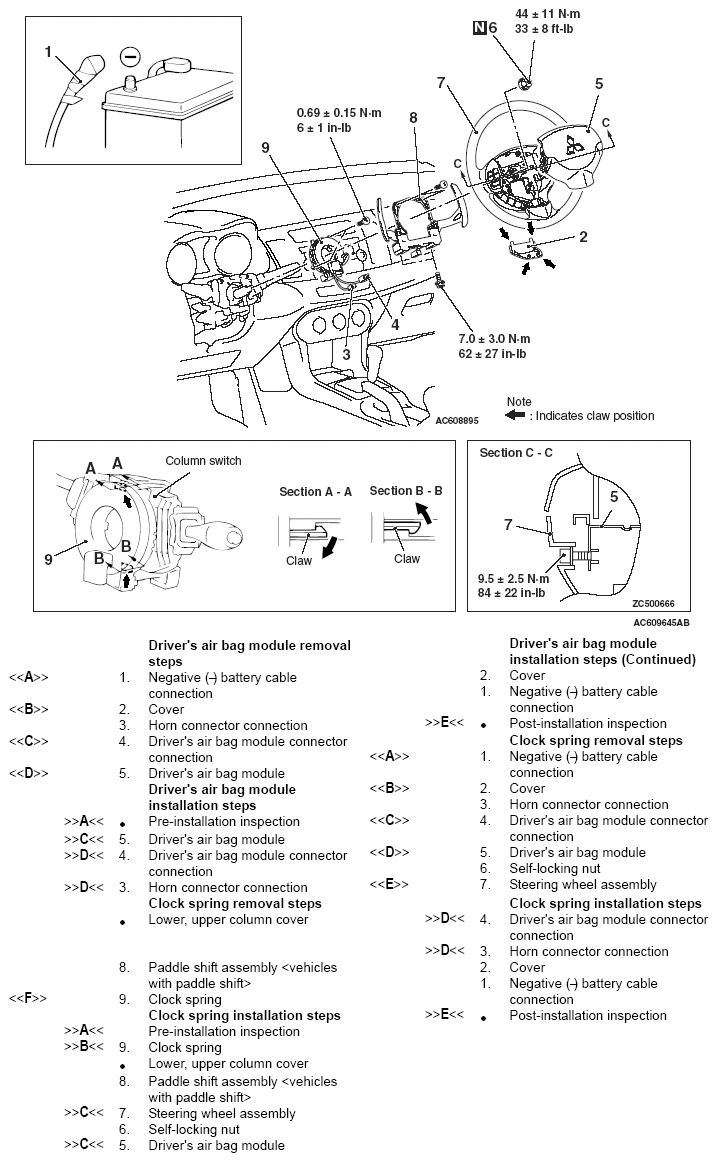

Fig 1: Driver Air Bag Module And Clock Spring Removal And Installation Replacement Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB990803: Steering Wheel Puller
• MB991958 Scan Tool (M.U. T.-III Sub Assembly)

• MB991824:Vehicle Communication Interface(V. C. I.)
• MB991827:M.U. T.-III USB Cable
• MB991910:M.U. T.-III Main Harness A
• MB992006: Extra Fine Probe
