DTC B1B0A: Passenger's (Front) Air Bag Module (1st squib) System (Squib Circuit Open); DTC B1B0E: Passenger's (Front) Air Bag Module (2nd squib) System (Squib Circuit Open): Notes

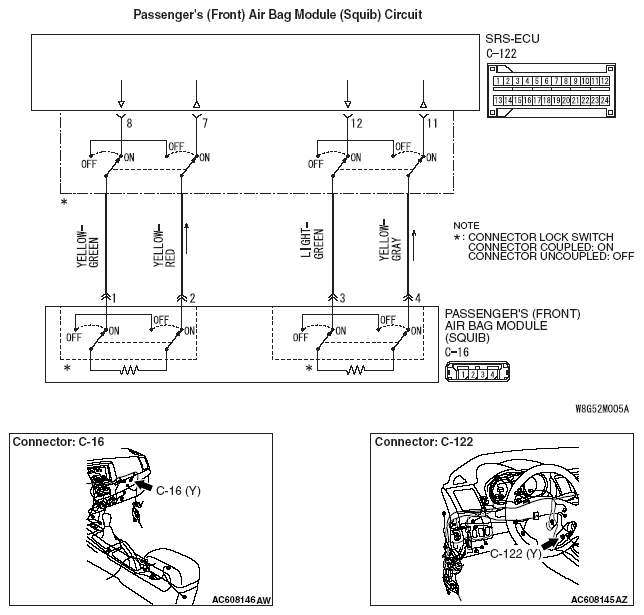

Fig 1: Passenger (Front) Air Bag Module (Squib) Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: If DTC B1B0A <1st squib> or B1B0E <2nd squib> is set in the SRS-ECU, always diagnose the CAN main bus line.
