Removal And Installation

CAUTION: When the knock sensor is replaced, initialize the learned value using scan tool (Refer to INITIALIZATION PROCEDURE OF MFI ENGINE LEARNED VALUE ).

Pre-removal and post-installation operation

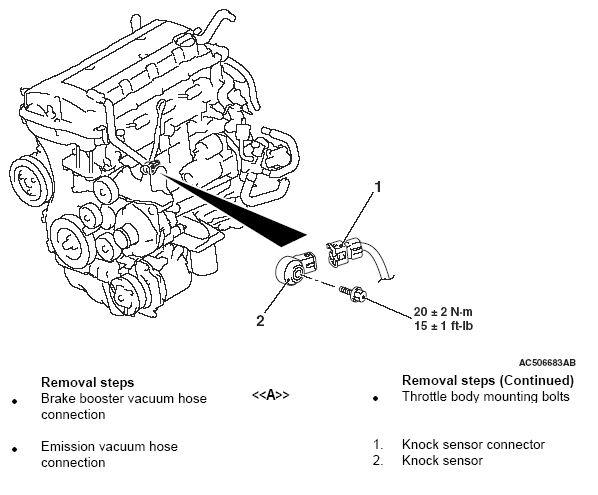

Fig 1: Knock Sensor Replacement Components With Torque Specifications
G05375459Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
