Lubrication Points

WARNING: This page is about a different car, the 2009 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

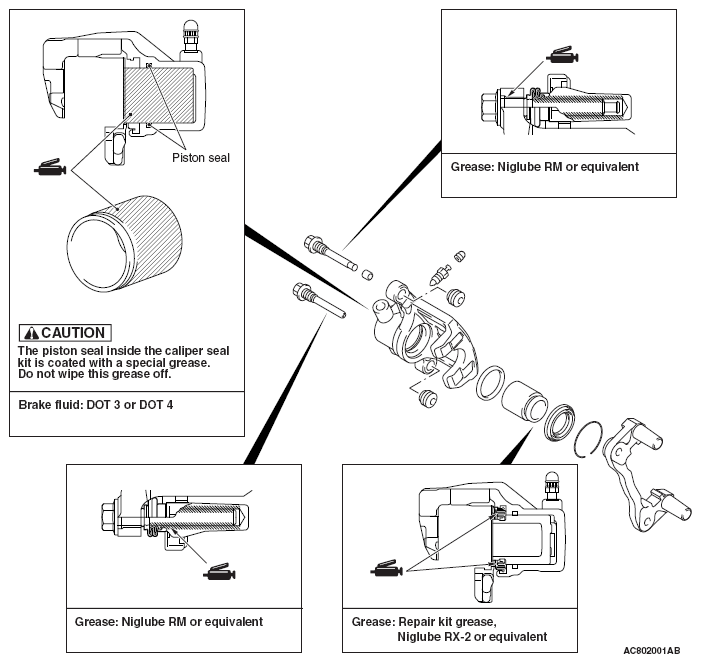

Fig 1: Identifying Lubrication Points Area
G05904703Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
