Home >> Mitsubishi >> 2008 >> Lancer ES, Standard >> Repair and Diagnosis >> Restraints >> Passive Restraints >> Interior - Lancer >> Trims >> Removal And Installation >> Notes
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Removal And Installation: Notes

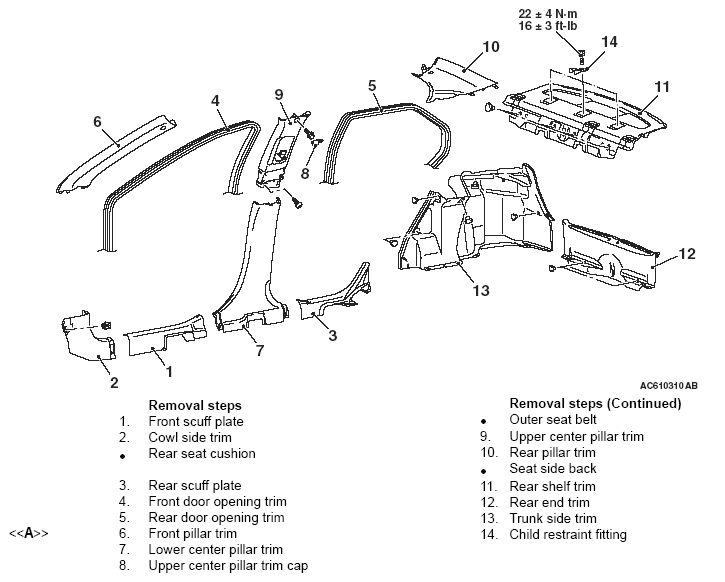

Fig 1: Trims Replacement Components With Torque Specifications
G05384600Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
