Warning Screen

When malfunctions occur to the vehicle, the following warning screens are displayed. If these screens are not displayed normally or if they continue to be displayed even after the factor is eliminated, take measures according to the action procedure.

Display content	Factor	Action procedure
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	Displayed with the sounding of tone alarm when the driver's door is opened with the key inserted in the ignition switch key cylinder.	If the ignition key reminder warning tone alarm is not being sounded, perform the troubleshooting for the ignition key reminder warning tone alarm (Refer to INSPECTION PROCEDURE 4: TONE ALARM DOES NOT SOUND NORMALLY.  ).
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	Displayed with the sounding of tone alarm when the driver's door is opened with the ignition switch at the LOCK (OFF) or ACC position and the lighting switch at the tail or head position.	If the lighting monitor warning tone alarm is not being sounded, perform the troubleshooting for the lighting monitor warning tone alarm (Refer to INSPECTION PROCEDURE 4: TONE ALARM DOES NOT SOUND NORMALLY.  ).
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	Displayed while the theft alarm is in operation. Immobilizer is registered.	If the warning screen is not displayed normally or if the screen continues to be displayed, carry out the troubleshooting for the theft alarm (Refer to HOW TO DIAGNOSE THE CAN BUS LINES ) or immobilizer system (Refer to TROUBLE SYMPTOM CHART < vehicles with KOS > or Refer to TROUBLE SYMPTOM CHART < vehicles without KOS >).

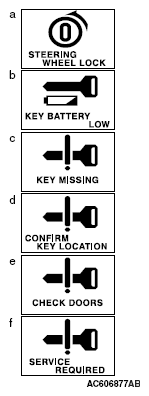

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	Displayed when a malfunction occurs to KOS. Refer to . Displayed when the following operations are carried out with the ignition switch at positions other than the LOCK (PUSH OFF) position after the engine is stopped. When the driver's door is opened When the doors are closed and locked Displayed if carrying a KOS key with different ID code or the KOS key is outside the operative range. Displayed when the KOS key removal monitoring function or KOS key confinement prevention function is in operation. Displayed when the door ajar prevention function is in operation. Displayed when there is a malfunction to KOS.	If the warning screen is not displayed normally or if the screen continues to be displayed, perform the troubleshooting for the KOS (Refer to DIAGNOSTIC TROUBLE CODE CHART ).
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	Displayed when the tire air pressure is an abnormality. (except spare tire) Displayed when the TPMS is an abnormality.	If the warning screen is not displayed normally or erased, carry out the troubleshooting for the TPMS (Refer to DIAGNOSIS ).
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	Displayed when the brake fluid amount is insufficient or a malfunction occurs to the brake device. Displayed if vehicle is driven with the parking brake engaged.	If the warning screen is not displayed normally or if the screen continues to be displayed, take the following measures for each displayed item. Check the brake fluid or brake device. Refer to ON-VEHICLE SERVICE . Check the parking brake. Refer to ON-VEHICLE SERVICE .
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	Displayed when a malfunction occurs to the anti-lock braking system (ABS).	If the warning screen is not displayed normally or if the screen continues to be displayed, perform the troubleshooting for the ABS (Refer to TROUBLE SYMPTOM CHART ).
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	If any of the doors or the trunk lid is not closed completely, the location of the ajar door is displayed with the sounding of tone alarm.	If the door ajar warning tone alarm does not sound, perform the troubleshooting for the door ajar warning tone alarm (Refer to INSPECTION PROCEDURE 4: TONE ALARM DOES NOT SOUND NORMALLY.  ).
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	Displayed when the hood is open. Displayed when there is a malfunction to the hood.	If the warning screen is not displayed normally, or if the screen continues to be displayed, check the hood latch switch input signal. Refer to INSPECTION PROCEDURE 12: ETACS-ECU DOES NOT RECEIVE ANY SIGNAL FROM THE HOOD SWITCH. .
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	Displayed when overheated.	If the warning screen is not displayed normally or if the screen continues to be displayed, perform the troubleshooting for the engine (Refer to TROUBLE SYMPTOM CHART ).
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	Displayed when the SST fluid temperature becomes high. Displayed when there is a malfunction to the TC-SST.	If the warning screen is not displayed normally or if the screen continues to be displayed, check the TC-SST diagnostic trouble code. Refer to DIAGNOSTIC TROUBLE CODE CHART .
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	Displayed when the vehicle is driven without the driver's seat belt fastened.	If the warning screen is not displayed normally or if the screen continues to be displayed, perform the troubleshooting for the seat belt reminder warning light (Refer to INSPECTION PROCEDURE 5: THE COMBINATION METER LIGHT DOES NOT ILLUMINATE NORMALLY OR THE MULTI INFORMATION DISPLAY IS NOT DISPLAYED NORMALLY.  ).
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	Displayed when there is a malfunction to the fuel system. Displayed when the remaining fuel amount is small.	If the warning screen is not displayed normally or if the screen continues to be displayed, take the following measures for each displayed item. Check the combination meter diagnostic trouble code. Refer to INSPECTION PROCEDURE 5: THE COMBINATION METER LIGHT DOES NOT ILLUMINATE NORMALLY OR THE MULTI INFORMATION DISPLAY IS NOT DISPLAYED NORMALLY.  . Immediately fill the fuel.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	Displayed when there is a malfunction to the engine oil circulation system.	If the warning screen is not displayed normally or if the screen continues to be displayed, check the engine oil amount. Refer to TROUBLE SYMPTOM CHART .
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	Displayed when there is a malfunction to the charging system.	If the warning screen is not displayed normally or if the screen continues to be displayed, check the battery. Refer to BATTERY TEST  .
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	Displayed when there is a malfunction to the SRS air bag or to the pre-tensioner mechanism.	If the warning screen is not displayed normally or if the screen continues to be displayed, perform the troubleshooting for the SRS air bag/pre-tensioner mechanism warning light (Refer to TROUBLE SYMPTOM CHART ).
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	Displayed when there is a malfunction to the ASC.	If the warning screen is not displayed normally or if the screen continues to be displayed, perform the troubleshooting for the ASC. Refer to TROUBLE SYMPTOM CHART .
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	Displayed when there is a malfunction to the S-AWC or ACD.	If the warning screen is not displayed normally or if the screen continues to be displayed, perform the troubleshooting for the S-AWC or ACD. Refer to TROUBLE SYMPTOM CHART .
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	Displayed with the sounding of tone alarm when the ambient temperature is 37°F (3°C) or less.	If the warning screen is not displayed even when the indicator on the combination meter shows 37°F (3°C), perform the troubleshooting for the freeze warning tone alarm. (Refer to INSPECTION PROCEDURE 4: TONE ALARM DOES NOT SOUND NORMALLY.  ).
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	Displayed when the timing chain becomes worn.	If the warning screen is not displayed normally or if the screen continues to be displayed, visually check the elongation of the timing chain. Refer to ENGINE ADJUSTMENT .
