DTC U0251: AWC time-out error (Local CAN); DTC U0440: AWC communication error (Local CAN); DTC U0435: AWC signal abnormality (Local CAN): Notes

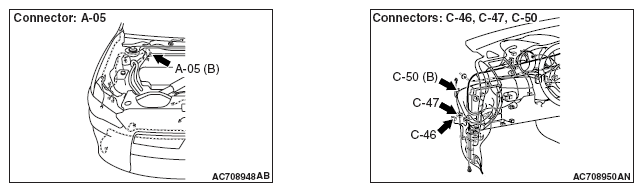

Fig 1: Locating Connectors A-05 And C-46, C-47, C-50

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION:

• If there is any problem in the CAN bus lines, an incorrect diagnostic trouble code may be set. Prior to this diagnosis, diagnose the CAN bus lines.
• Whenever the ECU is replaced, ensure that the CAN bus lines are normal.
• When the hydraulic unit (integrated with ASC-ECU) is replaced, always perform the calibration of steering wheel sensor, G and yaw rate sensor, brake fluid pressure sensor, cut valve, and inlet valve.(Refer to IN THE EVENT OF A DISCHARGED BATTERY  , STEERING WHEEL SENSOR CALIBRATION  , MASTER CYLINDER BRAKE FLUID PRESSURE SENSOR CALIBRATION  , and CALIBRATION OF CUT VALVE AND INLET VALVE  .)
