DTC B1B02: Driver's Air Bag Module (1ST Squib) System (Squib Circuit Open); DTC B1B06: Driver's Air Bag Module (2ND Squib) System (Squib Circuit Open): Notes

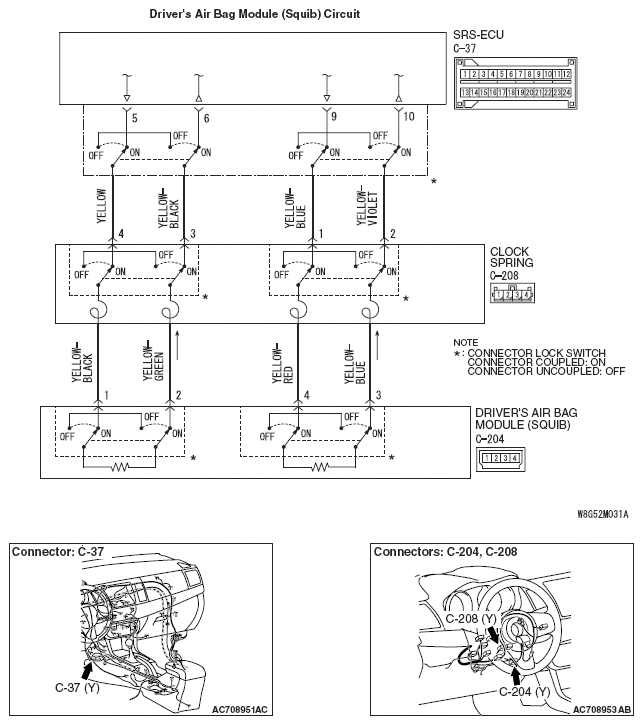

Fig 1: Driver's Air Bag Module (Squib) Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: If DTCB1B02 < 1st squib > or B1B06 < 2nd squib > is set in the SRS-ECU, always diagnose the CAN main bus line.
