DTC B1B0B: Passenger's (Front) Air Bag Module (1ST Squib) System (Short Circuit Between Squib Circuit Terminals); DTC B1B0F: Passenger's (Front) Air Bag Module (2ND Squib) System (Short Circuit Between Squib Circuit Terminals): Notes

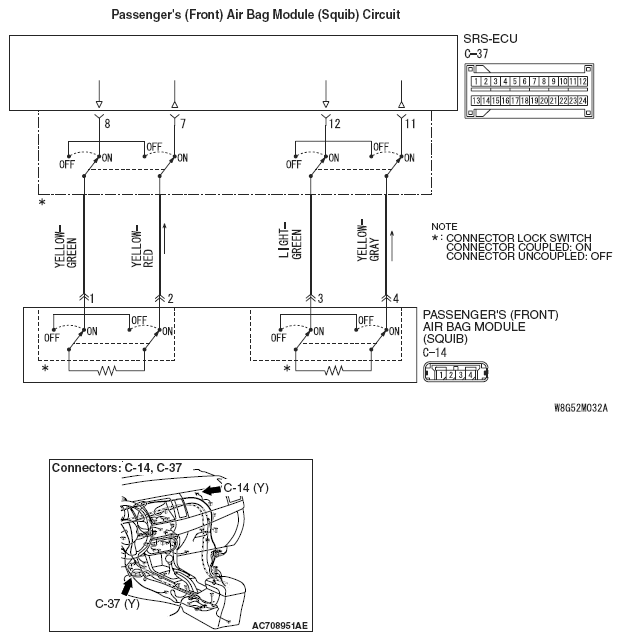

Fig 1: Passenger's (Front) Air Bag Module (Squib) Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: If DTC B1B0B < 1st squib > or B1B0F < 2nd squib > is set in the SRS-ECU, always diagnose the CAN main bus line.
