Removal And Installation: Notes

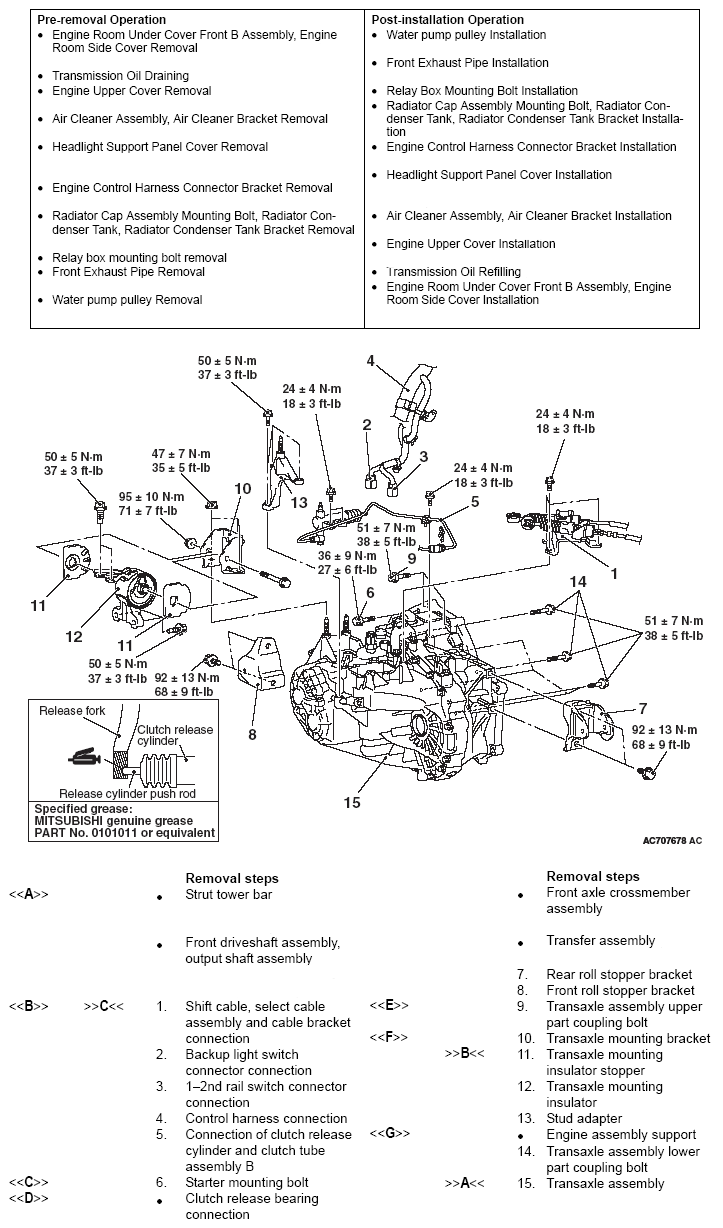

Fig 1: Transaxle Assembly Remove / Install Replacement Components With Torque Specifications
G05393905Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
