Keyless Entry Receiver: Service and Repair

EXTERIOR TRANSMITTER ANTENNA ASSEMBLY, INTERIOR TRANSMITTER ANTENNA ASSEMBLY, RECEIVER ANTENNA MODULE

REMOVAL AND INSTALLATION

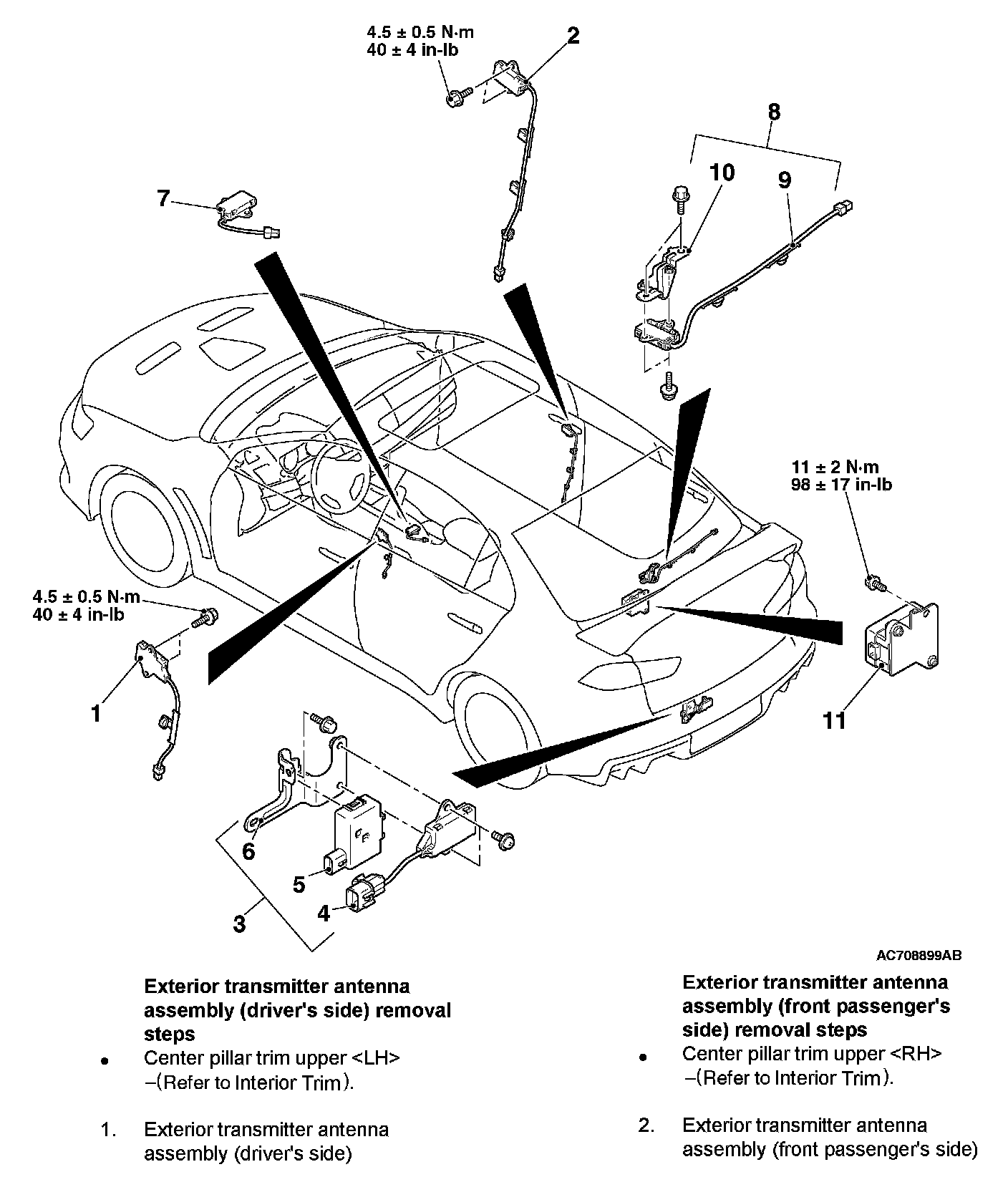

Removal Steps 1 - 2:

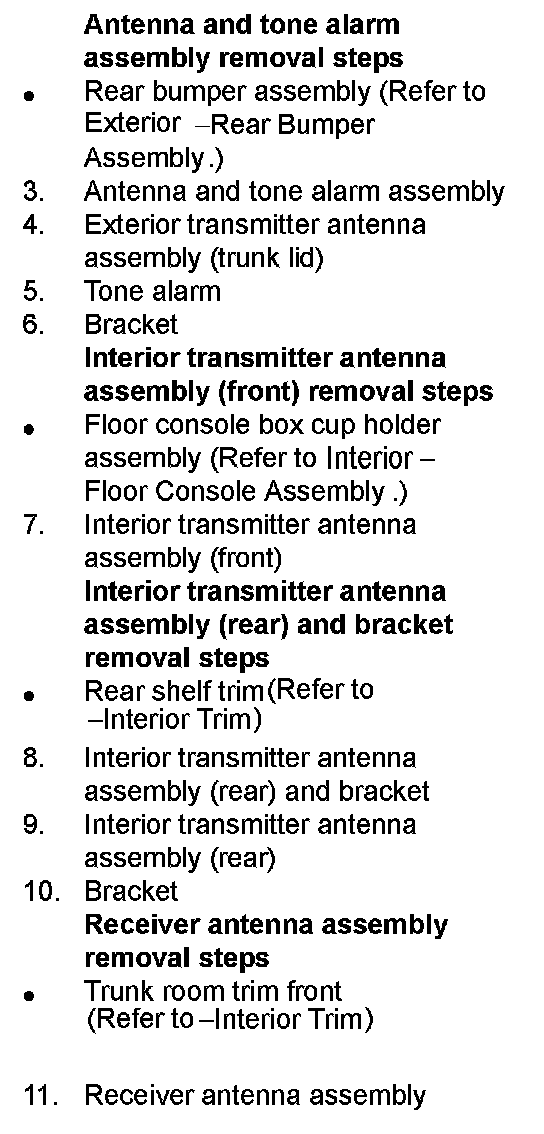

Removal Steps 3 - 11 (Part 2):

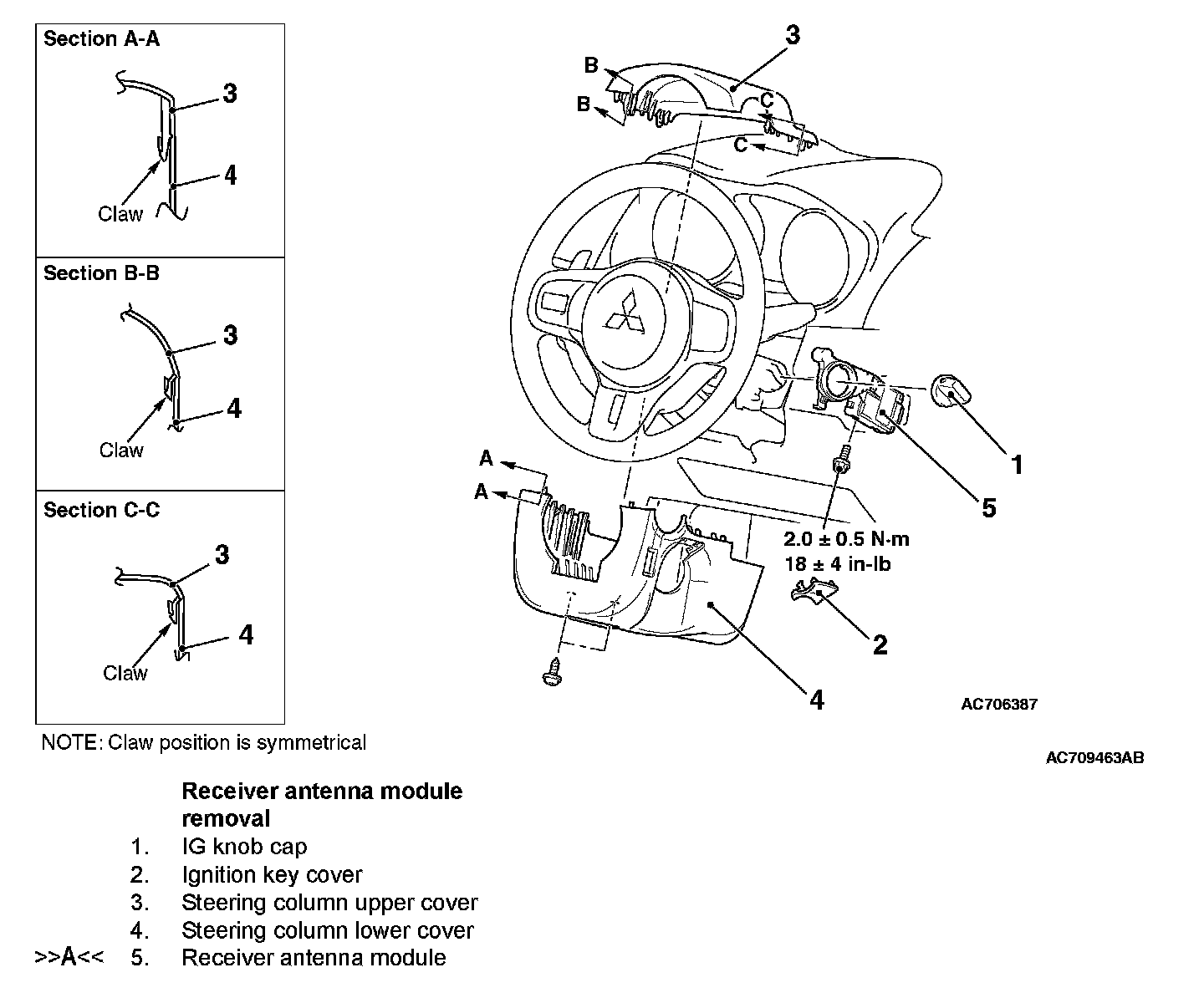

Receiver Antenna Module Removal Steps 1 - 5:

INSTALLATION SERVICE POINT

]A[ RECEIVER ANTENNA MODULE INSTALLATION
Check that the top claw of receiver antenna module is fixed securely to the boss of steering lock and the antenna is not floated on the key cylinder.
