Removal and Replacement

KNOCK SENSOR

REMOVAL AND INSTALLATION

CAUTION
When the knock sensor is replaced, initialize the learned value using scan tool.

Pre-removal & Post-installation Operation:

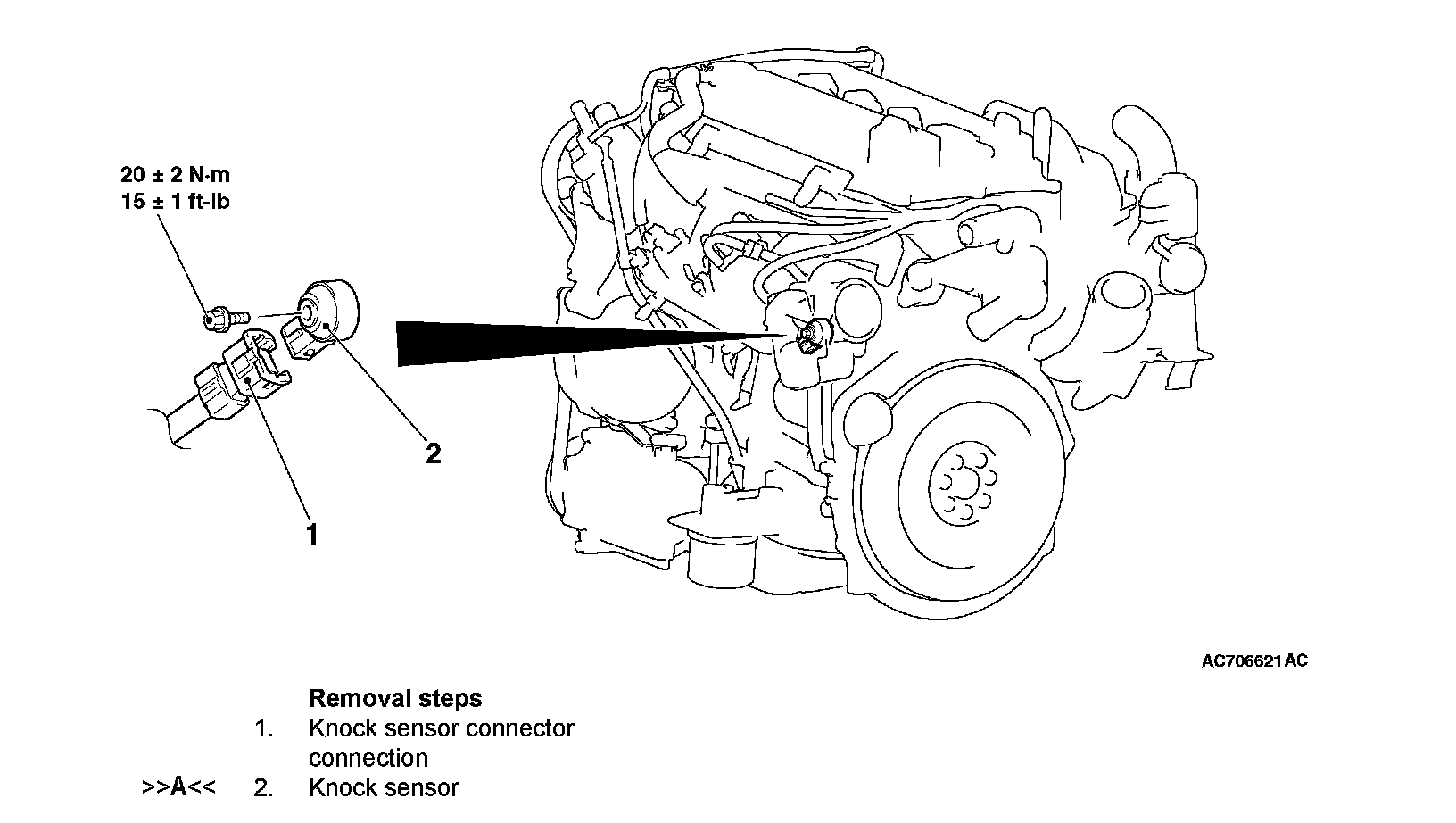

Removal Steps 1-2:

INSTALLATION SERVICE POINT

]A[ KNOCK SENSOR INSTALLATION





Set the connector of the knock sensor to the position shown in the figure, and tighten it to the specified torque.

Tightening torque: 20 ± 2 Nm (15 ± 1 ft-lb)
