Control Units

CONTROL UNITS LOCATION

Component Location

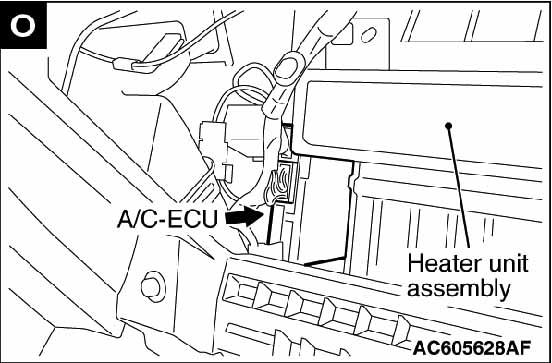

A/C-ECU Behind center of dash. See Figure.

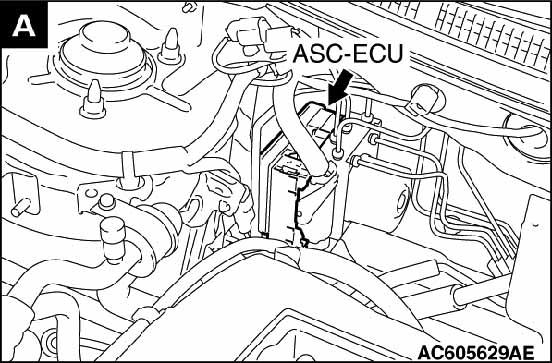

ASC-ECU Near strut tower. See Figure.

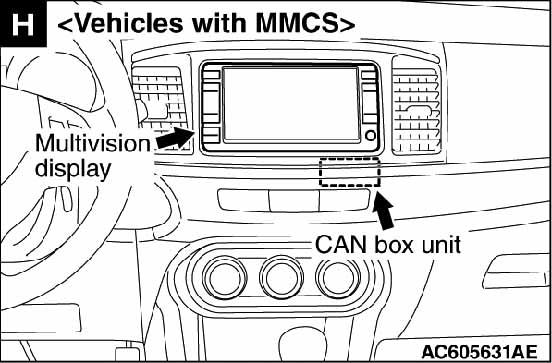

CAN Box Unit Behind center of dash. See Figure.

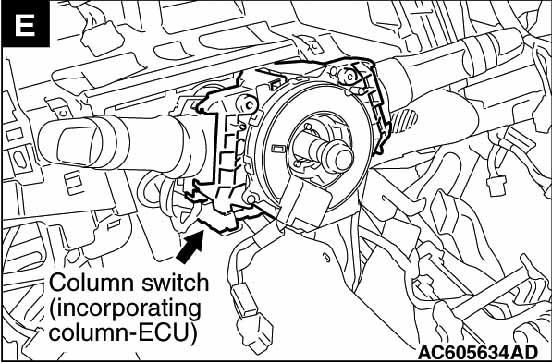

Column-ECU Left side of steering column. See Figure.

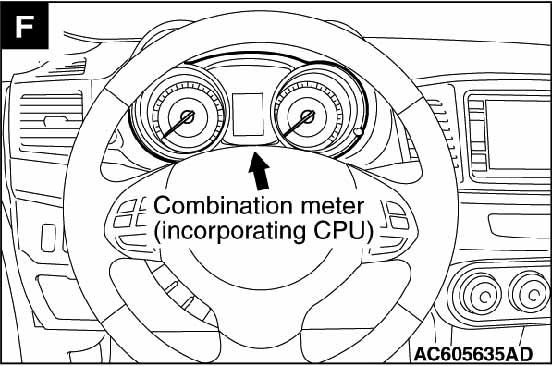

Combination Meter ECU Behind instrument cluster. See Figure.

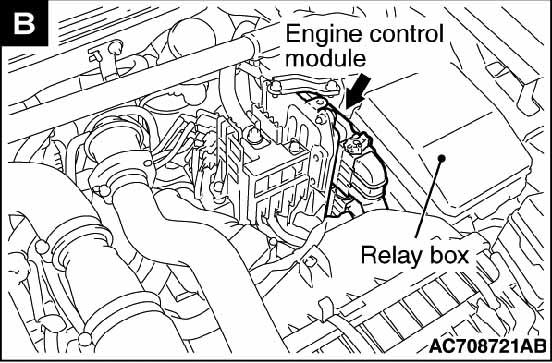

Engine Control Module Near relay box. See Figure.

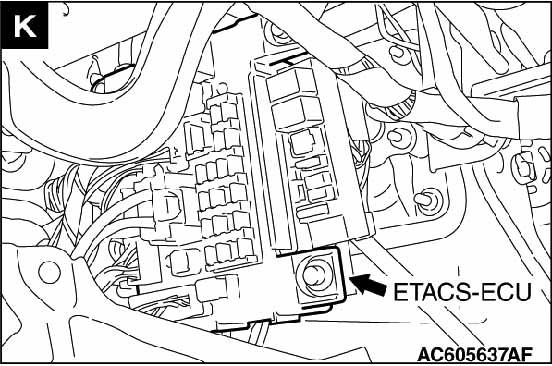

ETACS-ECU Behind left end of dash. See Figure.

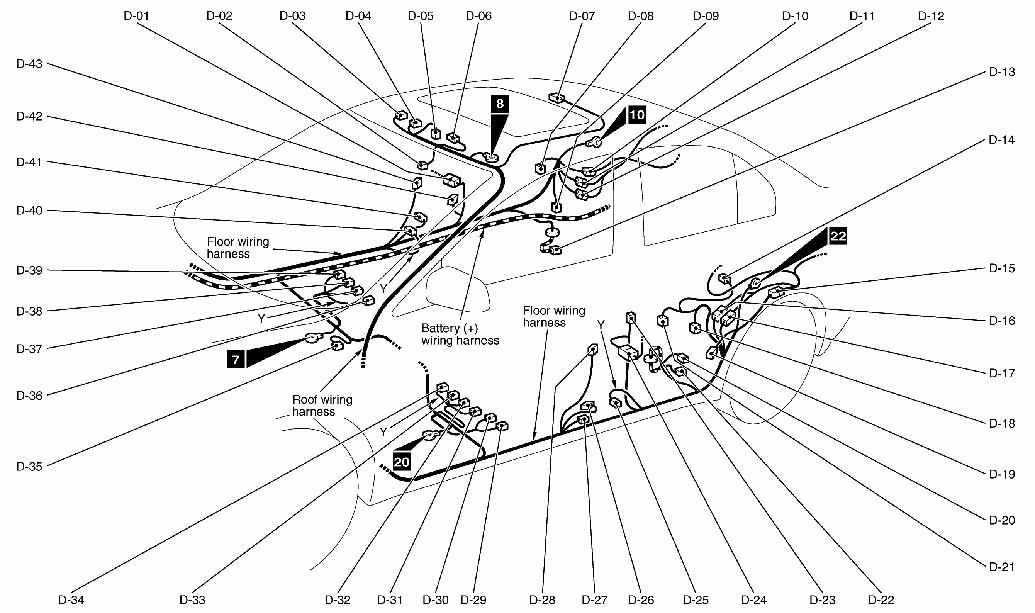

Fuel Pump Module (D-22) Top of fuel tank. See Figure.

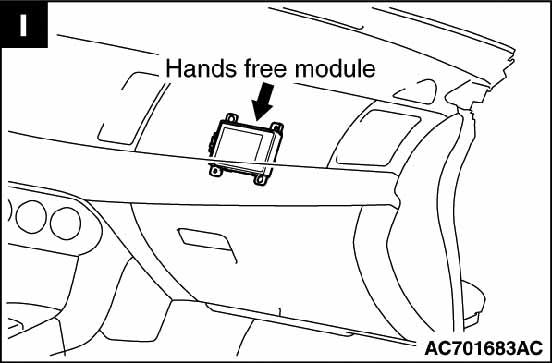

Hands Free Module Behind glove box. See Figure.

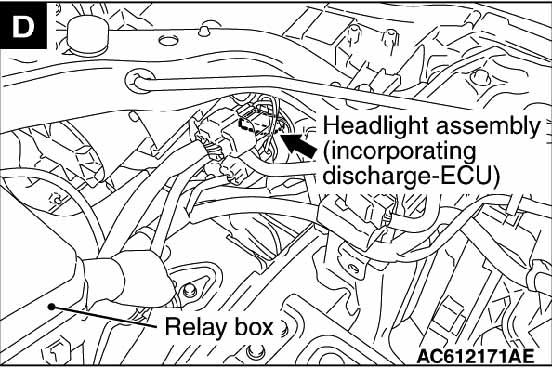

Headlight Discharge-ECU (Left/Right) Behind respective headlight assembly. See Figure.

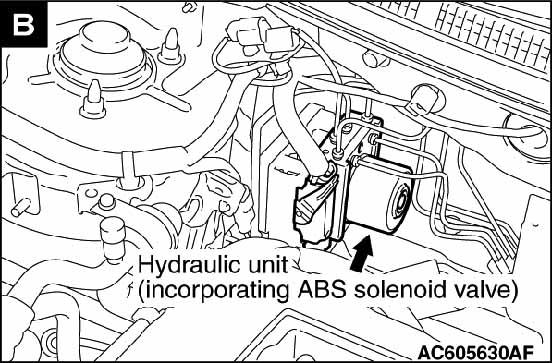

Hydraulic Unit Right rear of engine compartment. See Figure.

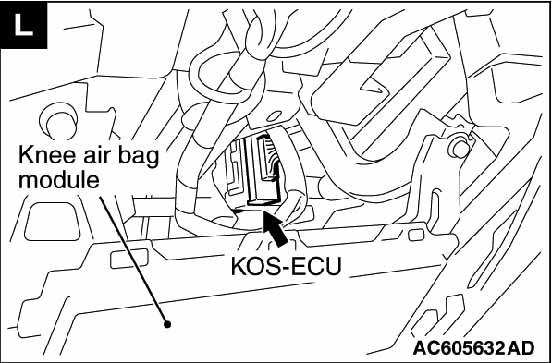

KOS-ECU Under left side of dash. See Figure.

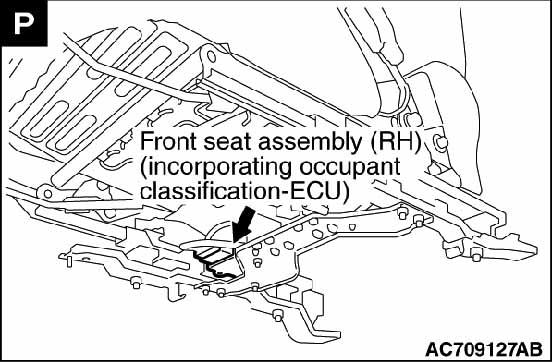

Occupant Classification-ECU Under front passenger's seat. See Figure.

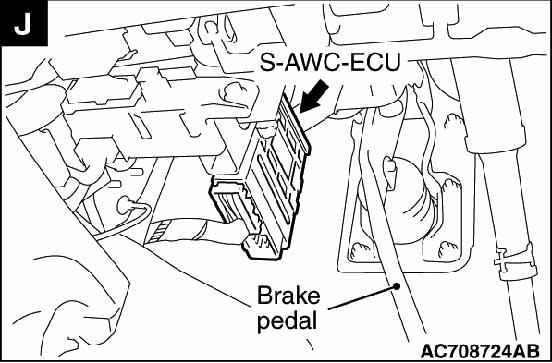

S-AWC ECU Under left side of dash. See Figure.

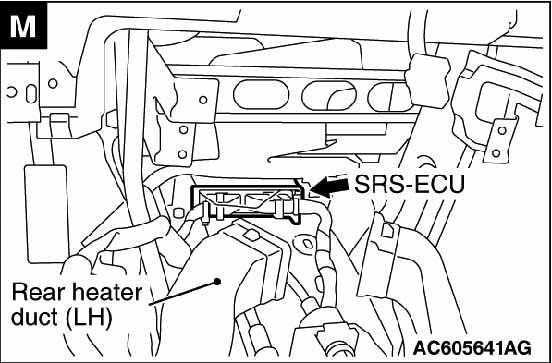

SRS ECU Behind lower center of dash. See Figure.

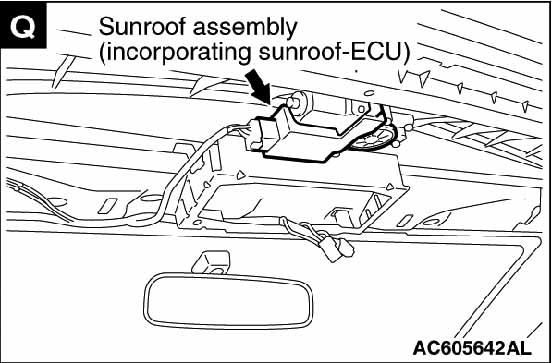

Sunroof-ECU Front center of headliner. See Figure.

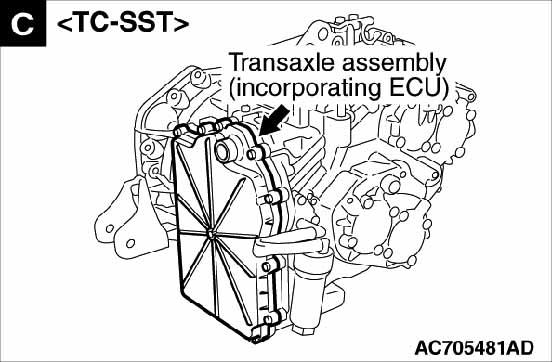

Transaxle ECU On transmission. See Figure.

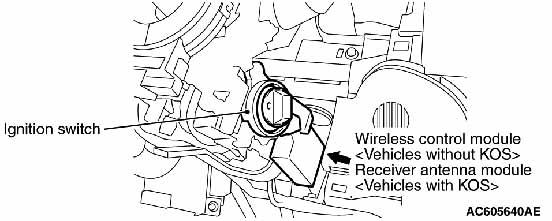

Wireless Control Module On steering column. See Figure.
