DTC B1B08: Passenger's (Front) Air Bag Module (1ST Squib) System (Shorted To Squib Circuit Ground); DTC B1B0C: Passenger's (Front) Air Bag Module (2ND Squib) System (Shorted To Squib Circuit Ground): Notes

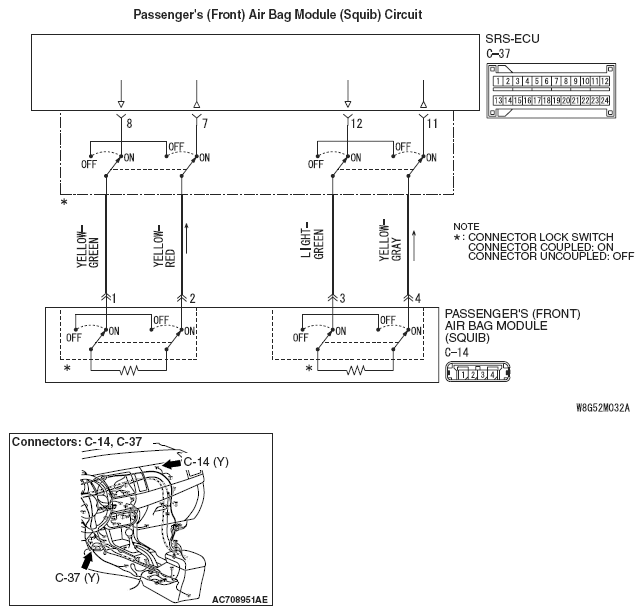

Fig 1: Passenger's (Front) Air Bag Module (Squib) Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: If DTC B1B08 < 1st squib > or B1B0C < 2nd squib > is set in the SRS-ECU, always diagnose the CAN main bus line.
