Data List Reference Table

This article has been updated by technical service bulletin 09 23 002 dated April 2009.

DATA LIST REFERENCE TABLE

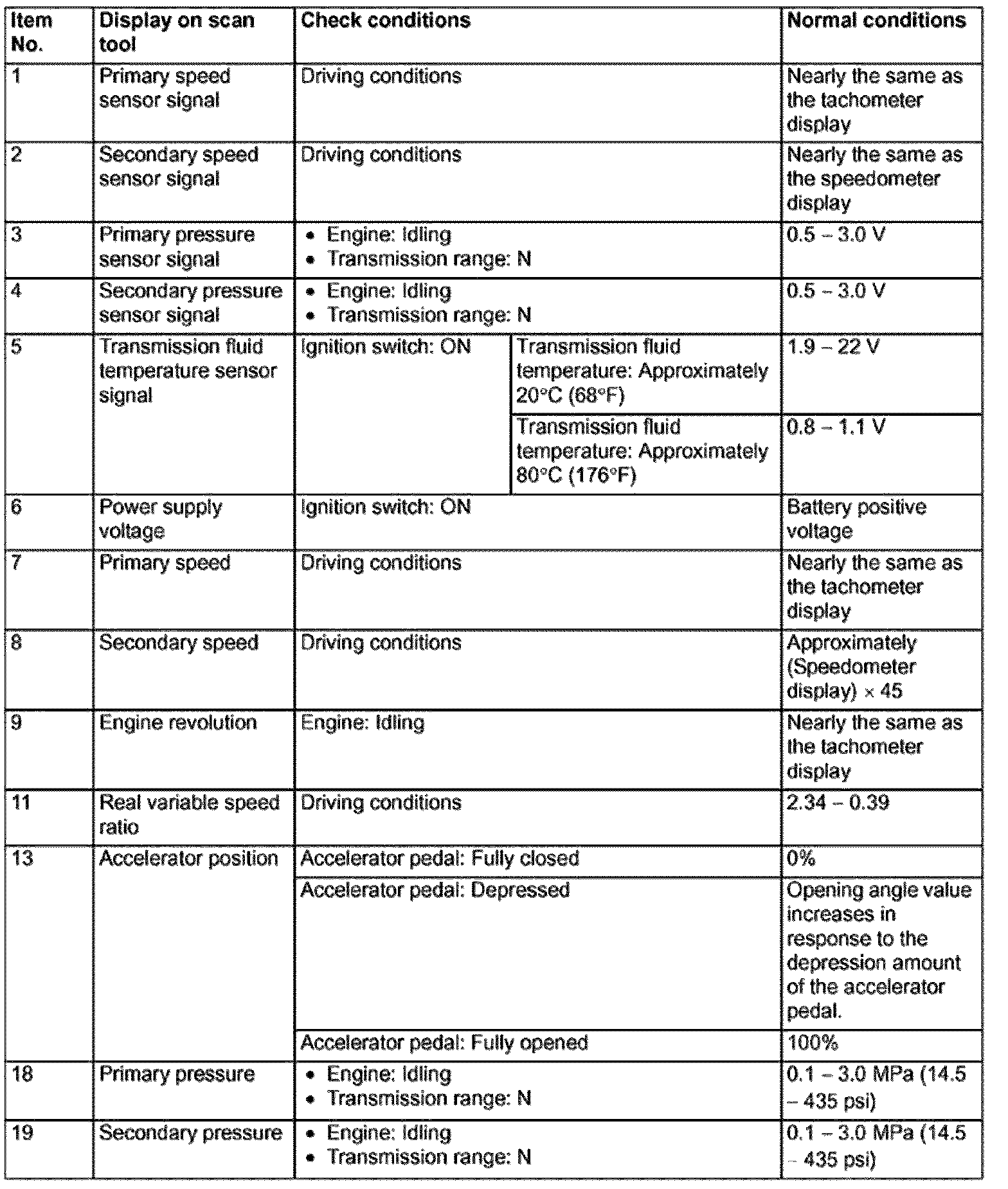

Data List Reference Table (Part 1):






Data List Reference Table (Part 2):

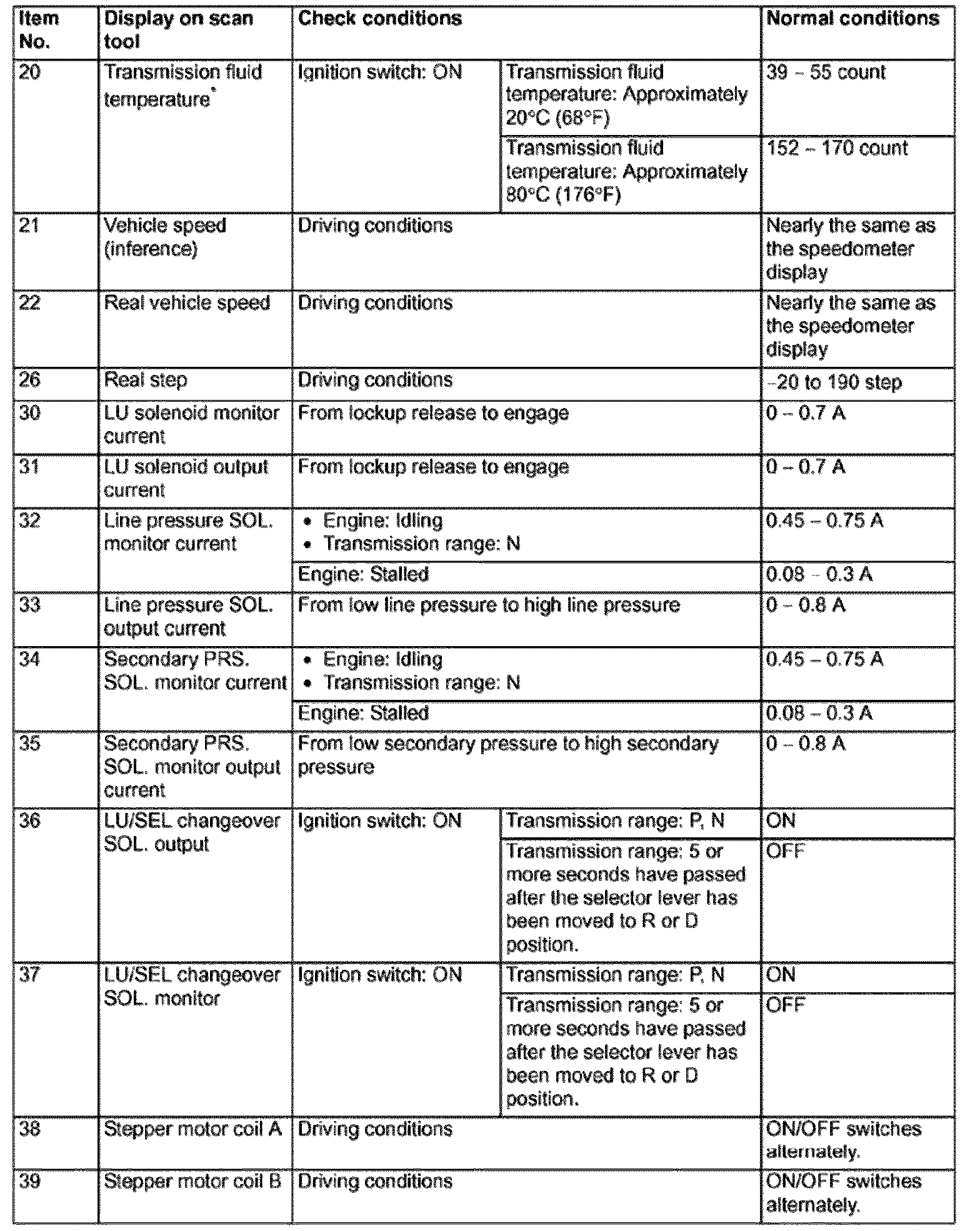

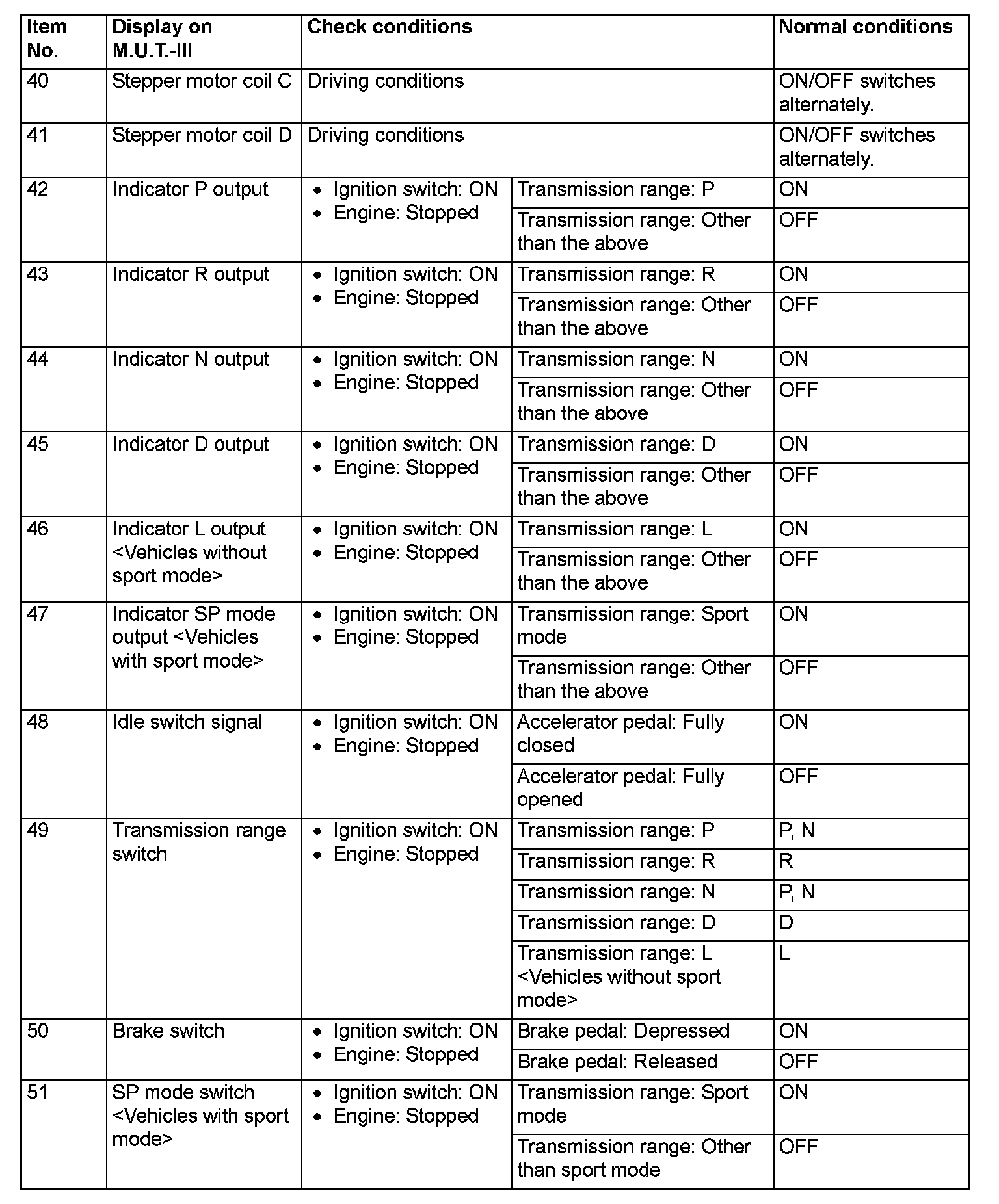

Data List Reference Table (Part 3):

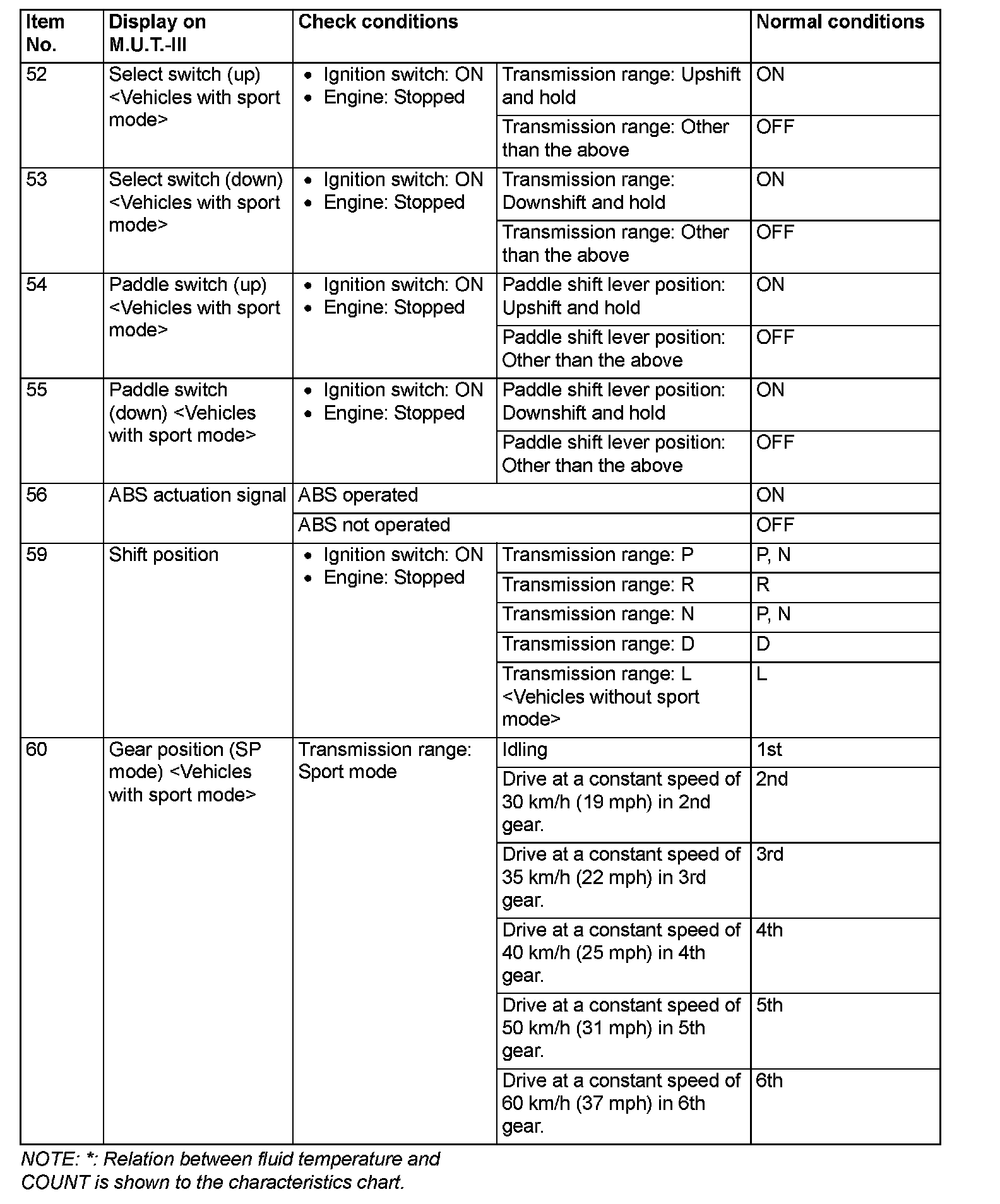

Data List Reference Table (Part 4):
