Disassembly And Reassembly: Overview

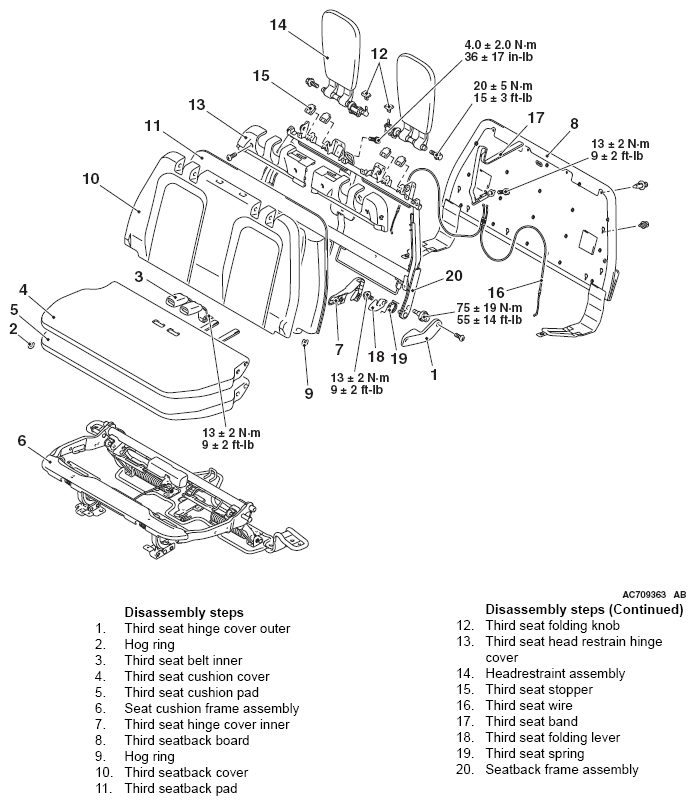

Fig 1: Exploded View Of Seat Assembly Components With Torque Specifications
G05433491Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
