Diagnostic Item 13: Diagnose When The Scan Tool Cannot Receive The Data Sent By The ECM < M/T > Or The Pcm < A/T > And Abs-Ecu < Vehicles Without TCL Or ASC > Or Abs/TCL-Ecu < Vehicles With TCL > Or TCL/ASC-Ecu < Vehicles With ASC > < Eclipse >: Notes

CAUTION: When servicing a CAN bus line, ground yourself by touching a metal object such as an unpainted water pipe. If you fail to do so, a component connected to the CAN bus line may be damaged.

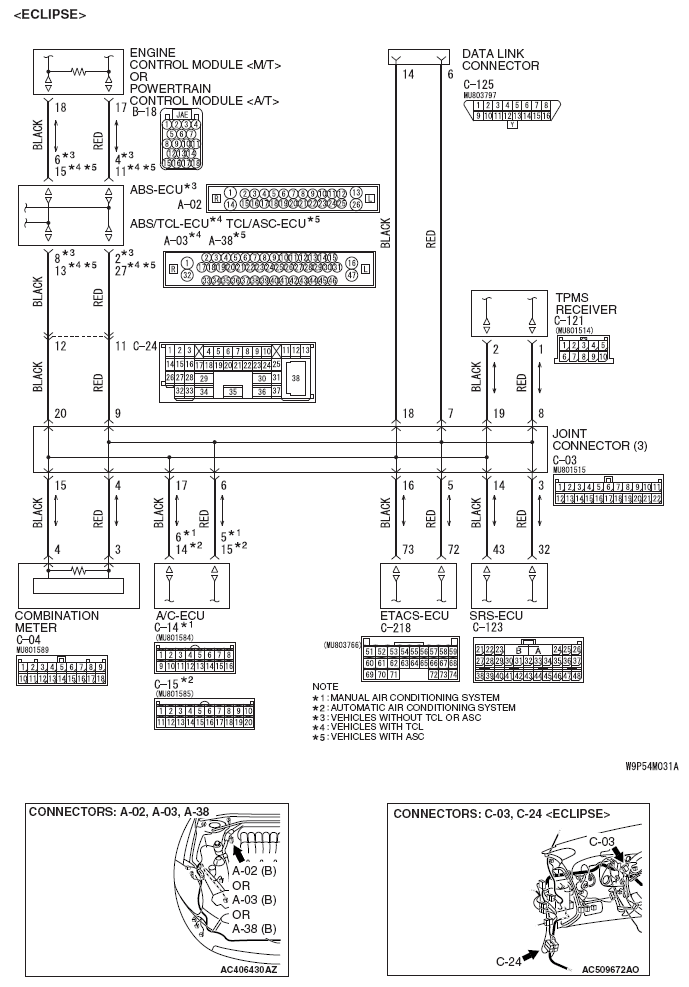

Fig 1: CAN Bus Line Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
