Inspection Procedure E-4: Keyless Entry System: The Liftgate <Eclipse> Or Trunk Lid <Eclipse SPYDER> Is Not Opened When The Keyless Entry Transmitter "Liftgate" Button <Eclipse> Or "Trunk Lid" Button <Eclipse SPYDER> Is Operated: Notes

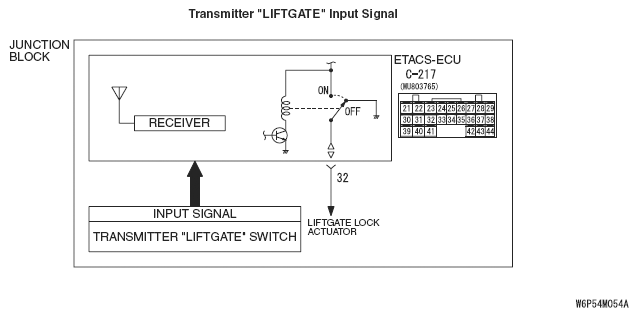

Fig 1: Transmitter "LIFTGATE" Input Signal
G05106904Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
