Control Unit

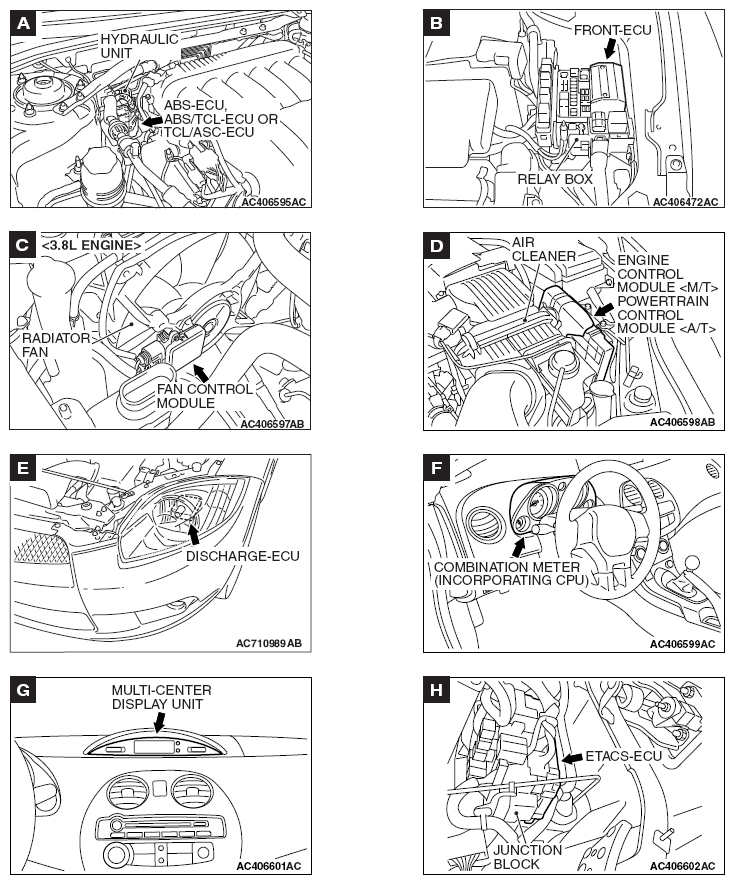

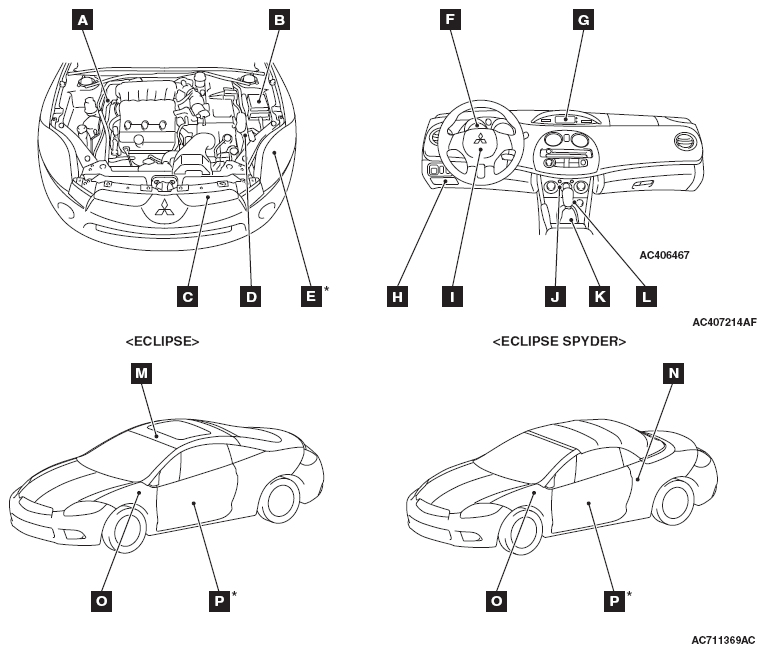

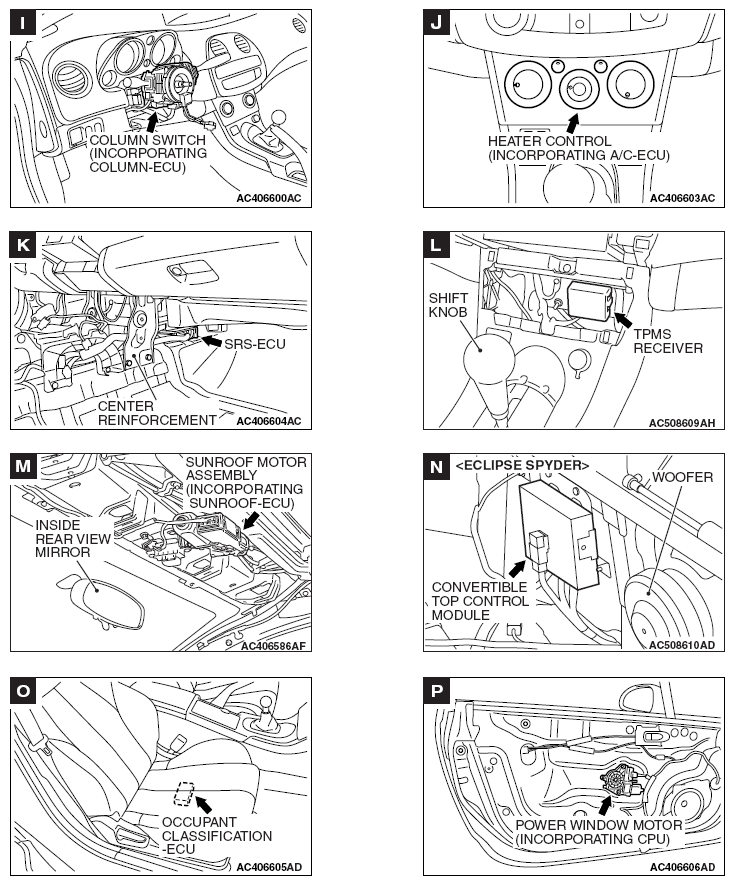

CONTROL UNIT SYMBOLS REFERENCE CHART
| NAME | SYMBOL | NAME | SYMBOL |
|---|---|---|---|
| ABS-ECU, ABS/TCL-ECU or TCL/ASC-ECU | A | Heater control (incorporating A/C-ECU) | J |
| Column switch (incorporating column-ECU) | I | Multi-center display unit | G |
| Combination meter (incorporating CPU) | F | Occupant classification-ECU | O |
| Convertible top control module < ECLIPSE SPYDER > | N | Powertrain control module < A/T > | D |
| Discharge-ECU | E | Power window motor (incorporating CPU) | P |
| Engine control module < M/T > | D | ||
| ETACS-ECU | H | SRS-ECU | K |
| Fan control module < 3.8L Engine > | C | Sunroof motor assembly (incorporating sunroof-ECU) | M |
| Front-ECU | B | TPMS receiver | L |
NOTE:
The * symbols indicate equipped at both sides.
