Removal And Installation: Notes

NOTE: The ABS/TCL-ECU is integrated in the hydraulic unit.

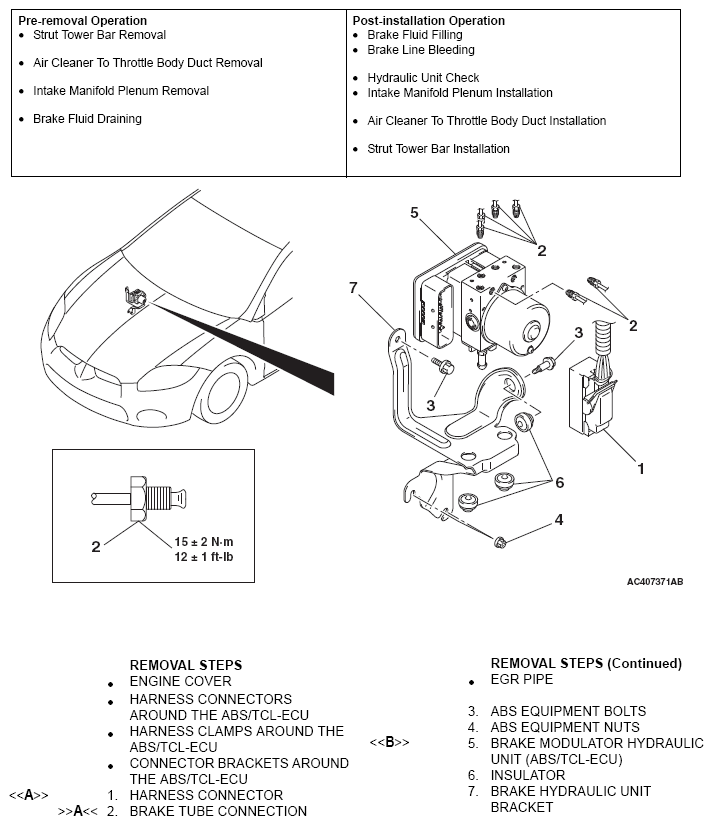

Fig 1: Identifying Hydraulic Unit Components
G05892280Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
